Hikvision cctv ptz keyboard controller
- Payment Type:
- T/T, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 3000pcs/month |
| Supply Ability: | 3000pcs/month |
| Payment Type: | T/T,Western Union |
| Incoterm: | EXW |
| Certificate: | CE ROHS FCC |
| Transportation: | Ocean,Land |
DVR and PTZ Control Keyboard
Application:
Used in the places where need quick control for Hikvision DVR, high speed dome camera, PTZ, motorized lens, outdoor wiper shield, etc.
Order Model:MY-4101HT
Production Instruction:
This control keyboard is specially used for controlling one or more Hikvision DVR conveniently without the limit of DVR panel and remote controller. Meantime it is specially designed for the quick control of dome camera and PTZ,let the actual control person control all the front end speed dome camera and Hikvision DVR through only one terminal device.
Specific Function:
l Display the current control address`s agreement and baudrate real time.
l Refurbish the firmware program on line
l Maximum sub-control:16
Basic Function:
l Completely replace the Hikvision embedded DVR``s panel and remote control`s function
l Simultaneously control the embedded DVR, speed dome camera and decoder
l RS485 control bus,control 31 DVRs at the most
l All input and output communication port use anti-radar design,powerful anti-jamming performance, the standard transmitting distance is 1200 meters
l Good communication compatibility, built-in many kinds of agreements
l Keyboard operation password on/off/lock function
l Key-press warning on/off function
l Speed dome camera infinitely variable speed control
l Blue LCD display
|
Model |
MY-4101HT(3D) |
|
Protocol |
Embeded DVR: Hivsion;High Speed dome camera: Pelco-d, Pelco-d, Panasonic, Hikvision etc |
|
Baud rate (bps) |
1200, 2400,4800,9600,19200 |
|
Control Address |
Control 31 embeded DVR at the most, address code :1-31 |
|
Communication Mode |
RS485 half-duplex (twin channel) |
|
Cascade connection number |
16 sub-control at most,controller ID:0-15 |
|
Joystick |
3D(up, down, left, right, zoom) |
|
Interface Mode |
10PIN pressing line port |
|
Display |
Blue LCD Screen |
|
Warning Tone |
Key-touch beep on/off |
|
Power Supply |
DC 12V±10% |
|
Power Consumption |
6W MAX |
|
Working Temperature |
0°C-50°C |
|
Store Temperature |
-20-70°C |
|

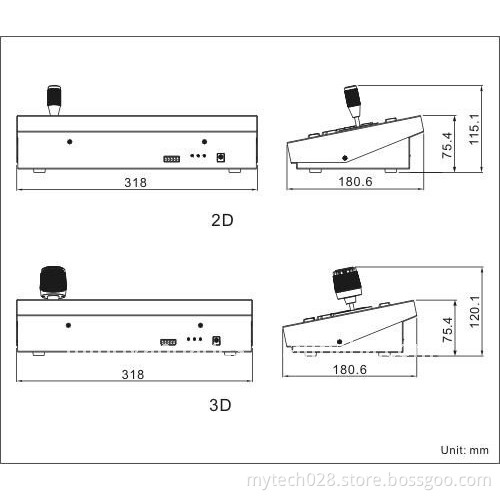

Dimension (mm) |
420X260X170 |
|
Weight (Kg) |
2.9(3D), |
