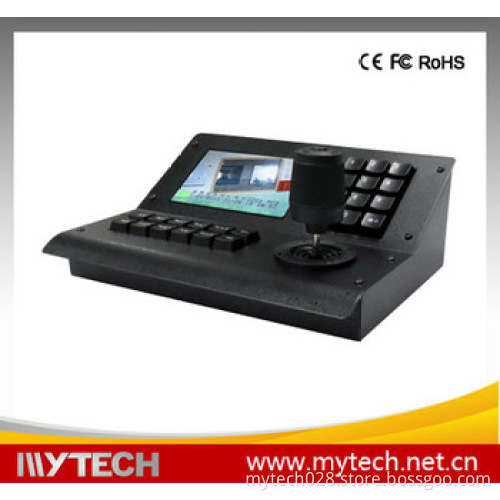

5inch 4D joystick keyboard controller 3CH BNC input
- Payment Type:
- paypal
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 5 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 3000pcs/month |
| Supply Ability: | 3000pcs/month |
| Payment Type: | paypal |
| Incoterm: | EXW |
| Certificate: | CE ROHS FCC |
Product name:3 channels color screen keyboard controller
Application:
Used in the places where need quick control for the high speed dome camera, PTZ, and need to view the image on site.
Special function:
l 3 channels video input ports
Basic function:
l RS485 control bus
l All input and output communication port use anti-radar design,powerful anti-jamming performance, the standard transmitting distance is 1200 meters
l Key-press warning on/off function
l Speed dome camera infinitely variable speed control
l High definition 5inch color screen
|
Para./Model |
MY-4501TF |
|
protocol |
Standard: Pelco-d |
|
Baudrate(bps) |
2400, 4800, 9600, 19200 |
|
Addr. |
Max 255pices PTZ, address code:1-255 |
|
communication |
RS485,RS232 half-duplex |
|
Joystick |
4 axis(control: up, down, left, right, zoom, auto.) |
|
Video Input |
3 Channel |
|
Interface Mode |
10PIN pressing line port,DB9 port |
|
Video input channels |
3 |
|
power |
DC 12V 1A±10% |
|
Power consumption |
6W MAX |
|
Working temperature |
-10°C-70°C |
|
Store temperature |
-20-80°C |
