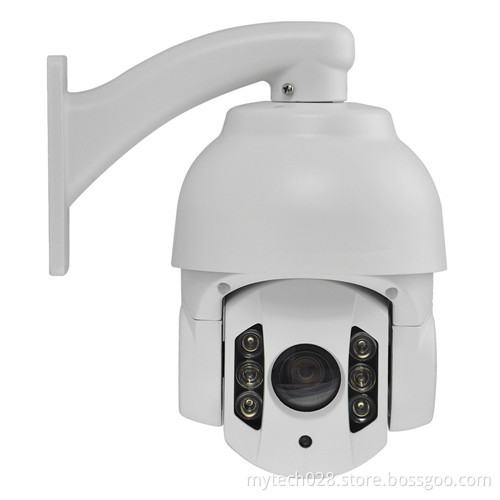

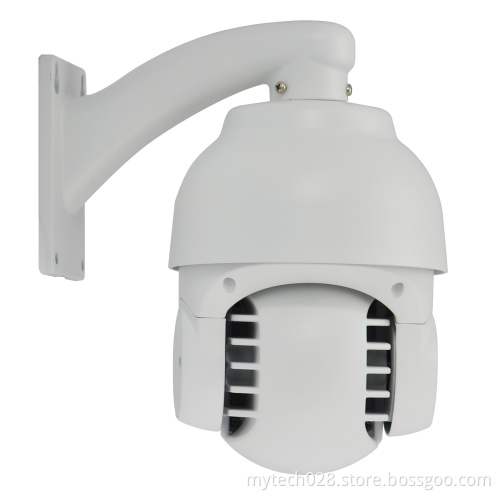

Auto Tracking Mini high speed dome ptz camera

Model: MY-56T-RB-I

Product Name: Outdoor Mini IR PTZ Camera with Auto Tracking Function

Application:

It can be widely used in wide range environments which required monitoring, e.g. river, forest, highroad, railway, airport,

port, oil field, sentry, piazza, park, scenic zone, street, station, venue, parcel surrounding, and etc.

Features:

IR Function:

1) 6PCS high-power infrared light, turn divided into two groups , no flashlight effect , IR distance 50-60 m.

2) Adopt the function of matching the IR to optical zoom of the module, make the image more clear.

3) Adopt constant current drive for the IR light, extend the lift of the IR light.

System Function:

1) Precision motor-driven,keen responsive,smoothly operation,the precision deviation less than 0.1 degree, the image does not have any vibration under any speed.

2) 360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area.

3)Support Hikvision 3D intelligent positioning function, can realize tracking and zooming out function when work with DVR.

4)Support graphic menu, operation prompt facility, PTZ position display.

5) Support data not lost when power off.

6) Support Auto checking and proportional zoom setting.

7) Support Protocol automatically diagnosis(Pelco-D, Pelco-P, Hikvision, Dahua), Baud rate automatically adjust 2400bps,4800bps,9600bps.

8) Support lightning protection, anti-surge, anti-surge function, IP66.

9) Support Auto Tracking

PTZ Function:

360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area

Pan control speed 0.6°~180°/s, tilt control speed 0.8°~75°/s

Support 220 preset

8 patrols, each patrol can contain up to 32 presets

4 patterns, can totally record up to 10 minus.

Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples

Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity (contain the idling

condition after the power supply has been turn on)
