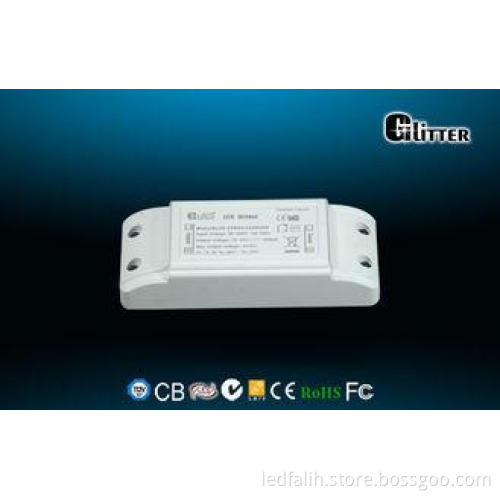

60Hz 110V 15W LED Light Drivers CB / SAA Approved , LED Lam
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Quick Detail:
1,CB, GS, SAA approval
2,Wide input voltage(90-264V)
3,Power factor over 95%
4,Input current 600-900mA
5,Wide application, can work below -40-60
6,Three years warrenty
Description:
>US brand chip, high anti-interference capability and reliability
> CB, SAA, GS approval
>Various specification for options, 100-1500MA put in a mass production
>Long lifespan, over 4,000 hours life in the high temperature age machine. Life expectance is over
40,000 hours.
>ON/OFF est ensure a long life. ON/OFF 20,000 times in high temperature& pressure respectively
Applications:
Widely apply to LED lighting, LED panel light, LED downlight etc.
Specifications :
|
Item |
Values |
Type value |
|
Rated input power |
16W-30W |
|
|
Input Voltage |
85-305VAC |
230VAC,110VAC,277VAC |
|
Frequency range |
47¡«63Hz |
60HZ¡¢50Hz |
|
Power Efficiency |
85%-91% |
89% |
|
Output Voltage |
27V~45VDC |
24V 36V 40V |
|
Output Current |
200mA~1200mA |
350mA 700mA |
|
Power Factor |
0.90~0.99 |
0.95 |
|
Ripple current |
3% |
|
|
Current precision |
±3.0% |
|
|
Short Current Protection |
Yes |
|
|
Operating Temperature |
-40℃ ~50℃ |
|
|
Storage Temperature |
-40℃ ~80℃ |
|
|
Safety standard |
EN61347-1¡¢EN61347-2-13 |
|
|
EMC standard |
EN55015,EN61547,EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
|
Competitive advantages:
CB, GS, SAA approval
Power factor over 0.95
Short circuit protection
100% full load aging test
Specially apply to LED lighting, high reliability and efficient cost
