Basic Info
Basic Info
Place of Origin: Shenzhen,China
Product Description
Product Description

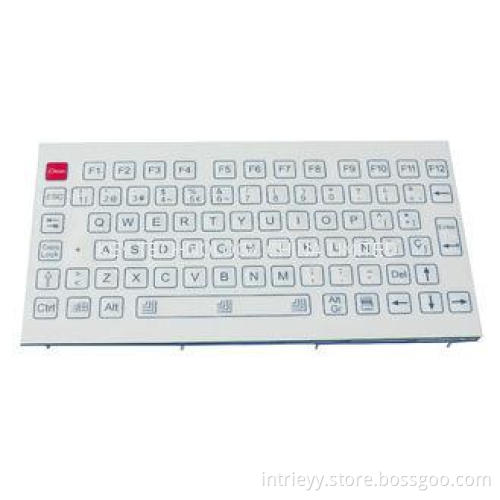

With FN Keys Mini Industrial Membrane Industrial for Anti-Microbial

Special Features:

1. 78 keys IP65 dynamic rated compact format industrial membrane keyboard with function keys on the upper line

2. 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with

short stroke 0.45mm with extremely tactile feeling for reliable data input

3. With Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC

4. Surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments

5. Ruggedized and backed with 3.0mm alumium plate with sand blasting & oxygenation treatment

6. Top panel mounted solution.

7. CE, FCC, ROHS

8. Ease of customizing with multiple languages, to accommodate foreign or custom variants

9. PS2/USB

10. This stylish, rugged medical keyboard is ideal for any application requiring a rugged enclosure and low profile.

Applications:

This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings.

Its numeric pad allows for easy data entry.

A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;

B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc

C: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty

manufacturing environments, warehouses etc

D: OTHER INDUSTRIES

Specifications:

MECHANICAL DATA

Key

78

Key switch Technology

metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys

Actuation Force:

1.0N for key 14.0mm x 14.0mm (press point)

Key travel

0.45mm

Key switch Lifetime

3 mil. operations

Protection Level

P65, NEMA 4x

Mounting Type

Top panel mounting or Desk Top

Operating Temperature

-20 °C to +50 °C

Colors

4 (Blue, White, Grey, Black)

G.W.

1.50KGs

Key Dimensions

(print area)

14.0mm x 14.0mm

Dimensions

200.30mm x 95.0mm (top panel)

ELECTRICAL DATA

Supply Voltage

+5V DC +/-5%

Current Rating

appr. 20mA

EMC Standard:

It is compliance with the council IEC 61000-4-2:2008;

IEC 61000-4-3:2006+AI:2007+A2:2010;

IEC 61000-4-4:2004

EMI:

EN 55022: 2010

EMS:

EN 55024:2010

Lifespan

> 3 years

Interface:

PS2, USB available.

OS:

All windows, Linux, Unix, Mac OSX

RELIABILITY

Certification

RoHS Compliant, CE and FCC,IP65,ESD

Protection Level

IP65(front panel)

Key Lifespan

>3 million actuations

MTBF

>50000H

MTTR

<30min
