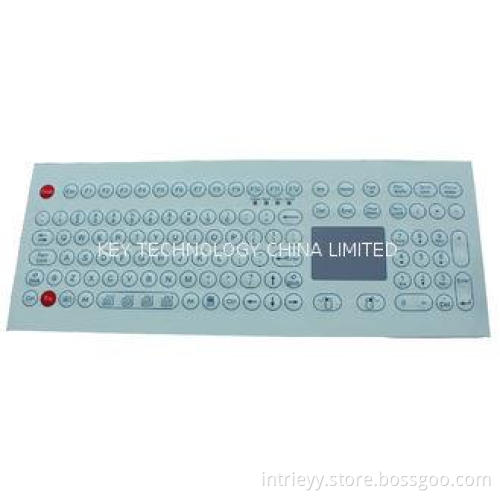

Panel Mount Waterproof Industrial Membrane Keyboard with Numerical


Special Features:


1. 108 keys IP65 rated compact format industrial membrane keyboard with full keyboard functionalities
2. With with sealed & ruggedized tough touchpad, integrated numeric keypad & function keys
3. Foil-covered aluminum front plate is mounted flush with durable polyester withstand to most chemicals and liquids under the harshest environments
4. With gold-on-gold metal dome key switch technology with short stroke 0.45mm with tactile feeling
5. With anti-microbial keyboard surface,
6. Clean key for easy cleaning without needing to take out the keyboard from PC
7. Top panel mounted.

8. CE, FCC, ROHS

9. Ease of customizing with multiple languages, to accommodate foreign or custom variants.

10. PS/2, USB connection cables that plug directly into computer like keyboard operations.

11. This stylish, rugged medical keyboard is ideal for any application requiring a rugged enclosure and low profile.

Applications:


This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings.
Its numeric pad allows for easy data entry.
A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty
manufacturing environments, warehouses etc
E: OTHER INDUSTRIES


Specifications:

MECHANICAL DATA

Key

108

Key switch Technology

metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys

Actuation Force:

1.0N for key 13.0mm x 13.0mm (press point)

Key travel

0.45mm

Key switch Lifetime

3 mil. operations

Protection Level

IP65, NEMA 4x

Mounting Type

Top panel mounting or Desk Top.

Operating Temperature

-20 °C to +50 °C

Colors

4 (Blue, White, Grey, Black)

G.W.

1.30KGs

Key Dimensions
(print area)


13.0mm x 13.0mm

Dimensions

410.0mm x 160.0mm (Front Panel)

TOUCHPAD

Touchpad cover

Composite

Motion Detection

Method

capacitive

Resolution

40 counts / mm

More than Lifetime 10 million strokes

Mutual Capacitance sensing

X/Y position
sensing resolution

40 counts/mm

X/Y position reporting

Relative

Output
(self-detectable depending on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5 V DC ±0.25V

Current rating
(active mode)

17 mA

ELECTRICAL DATA

Supply Voltage

+5V DC +/-5%

Current Rating

appr. 30mA


EMC Standard:

It is compliance with the council IEC 61000-4-2:2008;
IEC 61000-4-3:2006+AI:2007+A2:2010;
IEC 61000-4-4:2004

EMI:

EN 55022: 2010

EMS:

EN 55024:2010

Lifespan

> 3 years

Interface:

PS2, USB available.

OS:

All windows, Linux, Unit, Mac OSX

RELIABILITY

Certification

RoHS Compliant, CE and FCC,IP65,ESD

Protection Level

IP65(front panel)

Key Lifespan

>3 million actuations

MTBF

>50000H

MTTR

<30min
