Product Description
Product Description

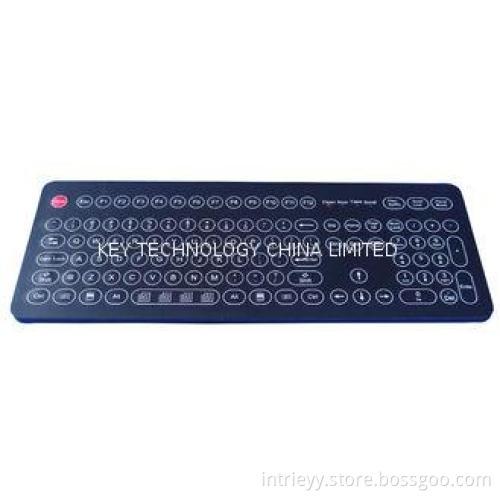

IP68 dynamic waterproof Industrial Membrane Keyboard with keypad

Special Features:

1. IP68 dynamic scratch proof industrial membrane keyboard

2. With short stroke 0.45mm with extremely tactile feeling for reliable data input

3. With 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology

4. 106keys with FN keys and numeric keypads

5. Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC

6. Durable and anti-microbial keyboard surface

7. Standard alone movable desk top version with robust polycarbonate case.

8. PS/2, USB connection cables that plug directly into computer like keyboard operations.

9. Ease of customizing with multiple languages, to accommodate foreign or custom variants.

Applications:

This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings.

Its numeric pad allows for easy data entry.

A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;

B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc

C: MILITARY: Army, Navy, Air force

D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty

manufacturing environments, warehouses etc

E: OTHER INDUSTRIES

Specifications:

MECHANICAL DATA

Key

106

Key switch Technology

metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys

Actuation Force:

1.0N for key 13.0mm x 13.0mm (press point)

Key travel

0.45mm

Key switch Lifetime

3 mil. operations

Protection Level

IP68

Mounting Type

Desk Top or Top panel mounting

Operating Temperature

-20 °C to +50 °C

Colors

4 (Blue, White, Grey, Black)

G.W.

1.80KGs

Key Dimensions

(print area)

13.0mm x 13.0mm

Dimensions

399.0mm x 150.0mm x 20.0mm

ELECTRICAL DATA

Supply Voltage

+5V DC +/-5%

Current Rating

appr. 20mA

EMC Standard:

It is compliance with the council IEC 61000-4-2:2008;

IEC 61000-4-3:2006+AI:2007+A2:2010;

IEC 61000-4-4:2004

EMI:

EN 55022: 2010

EMS:

EN 55024:2010

Lifespan

> 3 years

Interface:

PS2, USB available.

OS:

All windows, Linux, Unix, Mac OSX

RELIABILITY

Certification

RoHS Compliant, CE and FCC,ESD

Protection Level

IP68

Key Lifespan

>3 million actuations

MTBF

>50000H

MTTR

<30min
