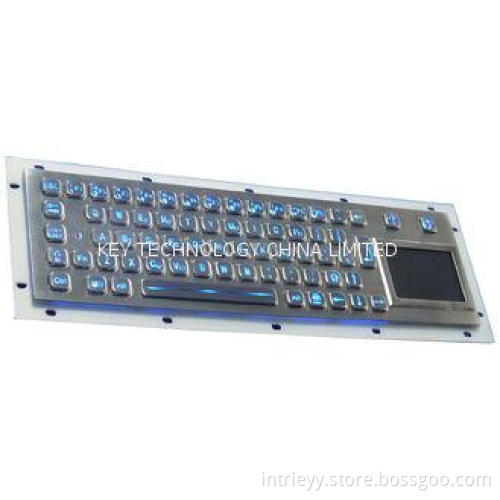

metal panel mounting illuminated USB keyboard with ruggedized touchpad
Special Features:
1. RoHS, CE, FCC, IP65, ESD
2. 68 keys compact format IP65 dynamic vandal proof stainless steel industrial kiosk keyboard
3. with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position
4. one compete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet
5. industrial PCB with carbon-on-gold key switch technology with long stroke 2.0mm with extremely good tactile feeling for fast and accurate input without any noise
6. rear panel mounting solution
7. with adjustable industrial backlight included (Red or Blue color optional)
8. waterproof execution according to IP65 protection from top panel, rear aluminium plate with mounting holes easily & tightly mounting to enclosure or panel
9. PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver
10. ease of customizing with multiple languages, to accommodate foreign or custom variants
11. metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers
12. complete electronic modules including controller in close consultation with our customers are available
Applications:
This Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
MECHANICAL DATA | |
Key | 68 keys, super quality brushed stainless steel |
Key top style | Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available |
Key Size | 14.0mm x 14.0mm for normal keys, |
Key travel | 2.0mm |
Switch life | more than 10 million of operations |
Actuation Force | 0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point) |
Front Plate | 1.5mm thickness super quality brushed stainless steel |
Back Plate | 3.0mm thickness brushed & oxidized aluminium |
G.W. | 1.60KGs |
Dimensions | 343.0mm x 105.0mm (front panel) , 367.0mm x 129.0mm (back panel) |
TOUCHPAD | |
Touchpad cover | Composite |
More than Lifetime 10 million strokes | |
Mutual Capacitance sensing | |
X/Y position | 40 counts/mm |
X/Y position reporting | Relative |
Output | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | 5 V DC ±0.25V |
Current rating | 17 mA |
ELECTRICAL DATA | |
Supply Voltage | +5V DC +/-5% |
Current Rating | appr. 20mA |
| It is compliance with the council IEC 61000-4-2:2008; |
EMI: | EN 55022: 2010 |
EMS: | EN 55024:2010 |
Lifespan | > 5 years |
Switch Contact Material: | Carbon-on-Gold key switch technology PCB. |
Interface: | PS2, USB available. |
OS: | All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20oC to +60oC |
Storage temperature | -30oC to +70oC |
Operating RH | 30-90% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at + 40oC | 21 days, IEC 60512-6 |
Dry heat test at + 85oC | 10 days, IEC 60512-6 |
RELIABILITY | |
Certification | RoHS Compliant, CE and FCC,IP65,ESD |
Protection Level | IP65(front panel) |
Vandal resistant | IK09 |
Key Lifespan | >10 million actuations |
MTBF | >50000H |
MTTR | <30min |
