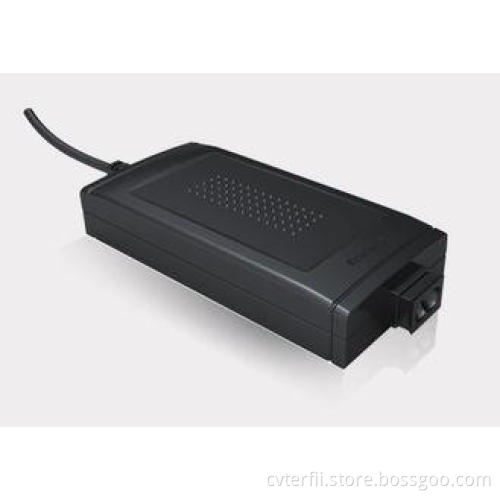

Self Powered Plastic Optical Fiber USB Adapter IEEE 802.3u Fast Ethernet
Fiberroad’s Ethernet POF USB Adapter FR8135 connects your home and office network to the benefits of Plastic Optical Fiber. The sleek, compact and self-powered USB Adapter plugs into your USB port providing instant connection to Fast Ethernet of 100Mbps over Plastic Optical Fiber, compatible with a wide variety of operating systems, including Windows, Linux and MAC.
• Supports USB Full and High Speed modes with Bus-Power or Self-Power capability.
• Integrates on-chip USB 2.0 transceiver and SIE compliant to USB Spec.1.1 and 2.0.
• High performance packet transfer rate over USB bus using proprietary burst transfer mechanism (submitted for US patent application).
• Supports USB to Ethernet bridging or vice versa in hardware.
• Back up 100Mbps full duplex operation.
• With power down and repeater mode.
• Display converter status by LED indicators.
• Wake On LAN support.
• Plug-and-play and easy installation.
• Low power consumption and cost saving
Network Ports | • One Fiber Port • OPT: Optolock® Connectorless System |
Standards Compliance | •IEEE 802.3u Fast Ethernet •IEEE 802.3ux Full Duplex |
Performance Specifications | •Bandwidth: 200Mbps •Maxim USB 2.0 High speed •Um Distance: 100 meters with 0.3NA POF |
Optical Characteristics | •Type: LED •Wavelength: 650nm visible red light •Maximum Output Power: -2.0 dBm •Minimum Output Power: -8.5 dBm •Sensitivity: -24.0 dBm •Maximum Input Power: -2.0 dBm |
Environmental Specifications | •Operating Temperature: 0℃ to 50℃. •Storage Temperature: -20℃ to 85℃. •Operating Humidity: 90% RH non condensing •Storage Humidity: 95% RH non condensing |
Status LEDS | •Link: Yellow •Activity: Green |
Mechanical Specifications | •Dimensions (WXDXH): 64mmx32mmx20mm •Weight: 0.038 kg |
Regulation Compliance | •FCC Class A, CE |
Operating System Drivers | •Windows Series •Netware •Unix Series •MAC OS |
Warranty | •12 Months |
Packaging | •USB Adapter x 1 •Installation Guide x 1 •Warranty Card x 1 •Driver CD x 1 |
Order information:
FR8135 POF USB Adapter
