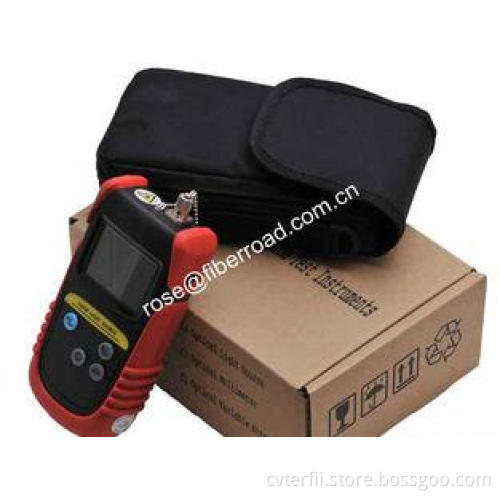

Handheld Fiber Optic Power Meter Test Equipment With FC ST SC Connector
Features
Larger and more stable output power comparable to desktop source. Stabilized Output
Using the Single key to switch the wavelength is flexible and convenient. High Reliability
Universal interface has three types of adapter: FC /SC / ST. Easy to operate
Small size/light weight/ high reliability. Flexibly switch the wavelength
Battery-powered, convenient field work. Omnipotence joint
Backlight at night.
Applications
u Fiber production and research devices
u Fiber Network Testing and Maintenance
u Optical Communication Teaching and Test
Technical Specifications
|
Type |
FR-LLS |
FR-LLSA |
FR-LLSB |
FR-LLSP |
FR-LLSD |
|
Emitter Type |
F-P LD |
||||
|
Wavelength(nm) |
1310/1550 |
850/1300 |
850/1310/1550 |
1310/1490/1550 |
850/1300/1310/1550 |
|
Output Power |
-7~ -9 dBm |
||||
|
Output Stability |
±0.10dB/1h(20°C) |
||||
|
Mode of Light Output |
CW & MOD |
||||
|
Modulation |
CW,270Hz,1KHz,2KHz |
||||
|
Optical Interface |
FC adapter(SC,ST Optional) |
||||
|
Operating Temperature |
-10°C~+ 60°C |
||||
|
Storage Temperature |
-20°C~ + 70°C |
||||
|
Work humidity |
<95% |
||||
|
Automatic shutdown time |
10min |
||||
|
Battery |
9V alkaline battery |
||||
|
Dimensions |
16.5×8.0×3.5cm |
||||
|
Weight |
280g |
||||
Notes:
1. we can supply the other wavelengths of dual-wavelength light source according to customers'
requirements.
2. Besides the light sources listed in the table, we can make up the arbitrary single-wavelength and dual-wavelength light source into an integrated three-wavelength light source output. Parameter index reference to dual-wavelength data.
3. Obtaining data in the way of CW, (we can provide the output-power according customers' requirements.) we can provide product which output power is customer request.
4. In the CW mode, the warm half-hour later measured.
5. CW refers to a constant optical power output.
Standard Packages
|
1 |
FR-LLS Handheld Laser sources |
1 |
|
2 |
Operating manual |
1 |
|
3 |
9V alkaline battery |
1 |
|
4 |
Maintenance card |
1 |
|
5 |
Certificate |
1 |
|
6 |
Drying agent |
1 |
|
7 |
Carrying case |
1 |
|
8 |
ST/SC Converters( Optional) |
2 |
