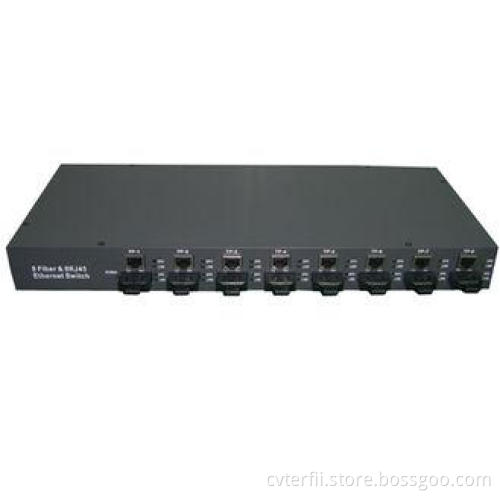

100M 8 Port Fiber Optic Network Switch 100Base-Fx Auto-Nego

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

100M 8 Port Fiber Optic Network Switch 100Base-Fx Auto-Negotiation

8port 10/100M RJ-45.
8port 100Base-Fx.
Store and forward mode.
10/100M auto-negotiation, maximum speed to 20/200M (full-duplex).
Supports IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control.
Supports MAC self-learning.
Automatic MDI/MDI-X configuration.
Port base VLAN.
Built-in 12Kx64 SRAM.
Supports 2048 MAC addresses table.
LED status of Link, activity, Full/half duplex, speed, and power on diagnostic function.
Steel case.

Specification Description:

Standard	IEEE802.3 , IEEE802.3u , IEEE802.3x
Topology	Star
Number of Ports	8 Port 10/100Base-Tx And 8Port 100Base-Fx
Uplink Ports	None
Transmission Rate	10Mbps : 14880pps , 100Mbps : 148800pps
Switching mode	Store-and-Forward
Flow control mode	IEEE 802.3x full-duplex flow control and back pressure flow control
LED Indicator	LED status of Link, activity, speed, and power on diagnostic function
Cable Support	10Base-T: 3, 4 or Cat 5 shielded / unshielded twisted pair, 100 meters max. 100Base-TX: Cat 5 shielded / unshielded twisted pair, 100 meters max. 100Base-Fx : 8.3μm , 8.7μm , 9μm and10μm on single mode fiber and 50 , 62.5 and 100μm on multi-mode fiber
Power supply	AC:220V or DC:-48V
Temperature Humidity		Temperature	Humidity
	Operation	-20 ℃to 70 ℃	10% to 90%
	Storage	-40 ℃to 75 ℃	5% to 95% RH
