Product Description

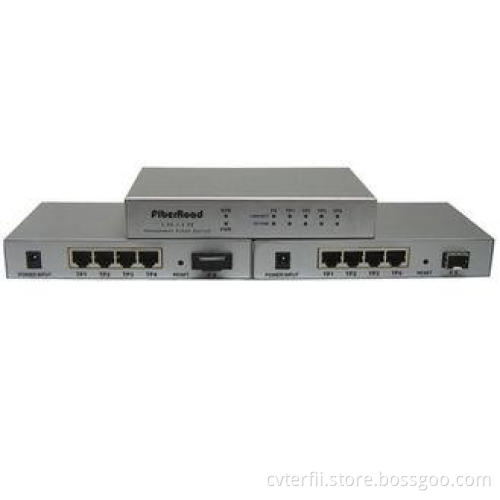

Multi Mode Single Mode TP Managed Fiber Optic Switch 10M / 100M 1 Port FX

Support 4 port 10/ 100M auto-detect Half/Full duples RJ45 ports and 1 fiber port.
Support WEB-based network management.
Support port VLAN and Tag VLAN. (8 Groups).
Support data packet length up to 1552 bytes.
Support MAC address auto-learning.
Support IGMP Snooping.
Support IEEE 802.1p priority tags.
Support DSCP.
Automatic MDI/MDI-X configuration.
Support bandwidth control.
Support for hardware Load Default button to restore the default value.
Choice of fiber-connector from SC, FC, ST, LC, WDM, multi-mode / single-mode fiber /100Base-SX / LX SFP.

Technical Parameter Description:

Standards and Protocols Supported	IEEE802.3 , IEEE802.3u , IEEE802.3x IEEE802.1Q
Wavelength	850nm/1310nm/1550nm
Distance	Dual Fiber MM : 2km Dual Fiber SM : 20/40/60/80/ 100km Single Fiber SM : 20/40/60/ 80km
MAC	2K
CPU	150Mhz or above
Memory	16MB or above
InputVoltage Range	9-15V/DC
Consumption	Max.6W
Operating Temperature	0 ℃~ 45 ℃
Storage Temperature	-40 ℃~ 70 ℃
Operating Humidity	10%~90% RH no condensing
Storage Humidity	5%~90% RH no condensing
Dimensions:	232mm* 142mm * 45mm
