50HZ / 60HZ 2500rpm 110V AC Cross Flow Fans Car Ventilation
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description

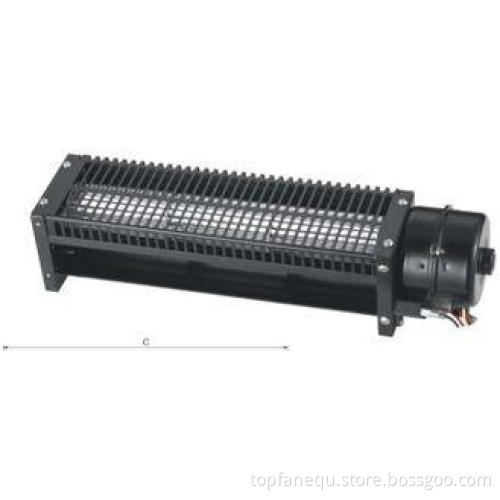

50HZ / 60HZ 2500rpm 110V AC Cross Flow Fans Car Ventilation Fan 60x300mm
2500rpm 110V AC Cross Flow Fan , high air flow and long life expectancy , are widely used in ventilating Elevator, as well as industrial production equipment, medical equipment, home appliances, etc.
Specification
| Model 60F | Size(mm) | Rated voltage |
Rated Frequency |
Rated Current |
Input Power |
Speed | Max Static Pressure |
Air Flow | Noise Level | Weight | ||
| A | B | C | (v) | (Hz) | (A) | (w) | (rpm) | (mmAq) | (m3/mim) | (dB-A) | (g) | |
| LRC60300A11 | 306 | 321 | 411 | 110 | 60 | 0.33 | 37 | 2800 | 7.4 | 5.5 | 55 | 1640 |
| LRC60300A22 | 220 | 50 | 0.14 | 30 | 2600 | 5 | 5.2 | 53 | ||||
| LRC60360A11 | 368 | 383 | 473 | 110 | 60 | 0.35 | 39 | 2500 | 5.5 | 6.5 | 56 | 1710 |
| LRC60360A22 | 220 | 50 | 0.16 | 34 | 2500 | 5.5 | 6.5 | 56 | ||||
| LRC60420A11 | 429 | 444 | 534 | 110 | 60 | 0.36 | 40 | 2400 | 4.8 | 6.8 | 56 | 1785 |
| LRC60420A22 | 220 | 50 | 0.17 | 36 | 2400 | 4.8 | 6.8 | 56 | ||||
