Aluminum Painted Industrial Cross Flow Fans , Low Noise DC

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

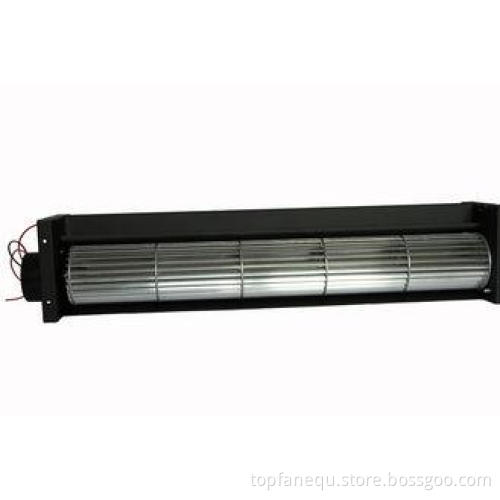

60*420mm DC cross flow fan / DC Tangential Fan / Aluminum painted Industrial heater Cross Flow Fan

60*420mm DC cross flow fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

12V 24V DC FAN,used for cooling and ventilation.
Frame:Aluminum ADC-12,Painted Black
Blade:PBT+15%GF
Stator& Rotor:Silicon steel
Magnet Wires:Copper 2 UEW
Bobbin:PA-66 UL 94 V-0
Bearing Type:Sleeve Bearing

Specification

Model	LRD40290A12
Rotor Dimension	40*290mm
Rated Voltage	DC 12V 24V
Voltage Range	DC 7.0-13.8V
Rated Current	0.13A±10% A
Power Consumption	7.20w±10%W
Speed	1400±10%RPM
Max. Air flow	131±10%CFM
Max. Static Pressure	0.075Inch-H2O
Noise Level	50 dB(A)
Weight	1000g
Environmental Specification	Operating Temperature:-30℃~70℃ Operating Humidity:10%~85%RH

Specification:

Model	Size(mm)			Rated voltage (v)	Rated Current (A)	Speed (rpm)	Max Static Pressure (mmAq)	Air Flow (m3/mim)	Air flow (CFM)	Noise Leve (dB-A)	Weight (g)
	A	B	C
LED60120A12	123	138	183	12	0.60	2500	5.1	1.7	60	44	620
LRD60120A24				24	0.40					44
LRD60180A12	184	199	244	12	0.80	2200	3.8	2.5	88	46	700
LRD60180A24				24	0.45					46
LRD60240A12	245	260	305	12	1.00	2000	3.3	3.2	117	48	770
LRD60240A24				24	0.55					48
LRD60300A12	306	321	366	12	0.50	1600	1.8	3.3	113	47	840
LRD60300A24				24	0.25					47
LRD60360A12	368	383	428	12	0.55	1500	1.7	3.7	131	48	930
LRD60360A24				24	0.25					48
LRD60420A12	429	444	489	12	0.60	1400	1.7	4.4	156	50	1000
LRD60420A24				24	0.30					50

Dimension:
