Ball Bearing AC Cross Flow Fans , Aluminum Impeller DC Elev

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

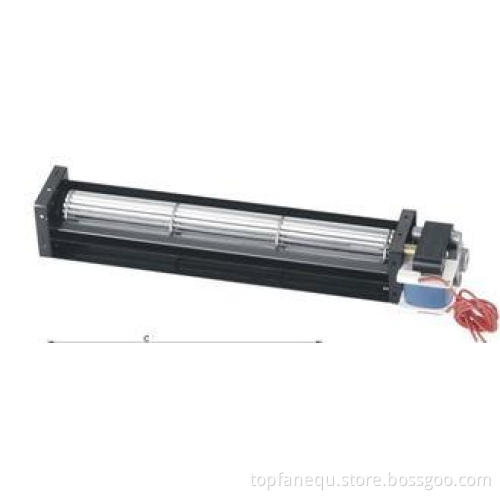

Ball Bearing AC Cross Flow Fans , Aluminum Impeller DC Elevator Fans

220V 30x150mm Cross Flow Fan, high air flow and long life expectancy , are widely used in ventilating Elevator, as well as industrial production equipment, medical equipment, home appliances, etc.

Specification

Model 40F	Size(mm)			Rated voltage	Rated Frequency	Rated Current	Input Power	Speed	Max Static Pressure	Air Flow	Noise Level	Weight
Model 40F	A	B	C	(v)	(Hz)	(A)	(w)	(rpm)	(mmAq)	(m3/mim)	(dB-A)	(g)
LRE40090A11	98	108	154	110	60	0.11	9	3150	2.8	1	38	520
LRE40090A22	98	108	154	220	50	0.07	11	2700	1.8	0.8	36	520
LRE40150A11	160	170	222	110	60	0.12	10	2800	2.7	1.4	38	570
LRE40150A22	160	170	222	220	50	0.07	11	2600	1.9	1.2	36	570
LRE40190A11	198	208	260	110	60	0.12	11	2350	2.8	1.4	35	590
LRE40190A22	198	208	260	220	50	0.07	12	2550	2	1.4	36	590
LRE40290A12	300	310	366	110	60	0.21	16	2200	2.9	2.1	36	720
LRE40290A24	300	310	366	220	50	0.09	14	2400	2.1	2.4	38	720
LRE40350A11	348	358	422	110	60	0.13	13	2000	3	2.2	41	790
LRE40350A22	348	358	422	220	50	0.11	14	2200	2.4	2.6	42	790
LRE40420A12	420	430	494	110	60	0.11	14	1800	3.2	2.4	43	820
LRE40420A24	420	430	494	220	50	0.11	15	1800	2.6	2.4	44	820
