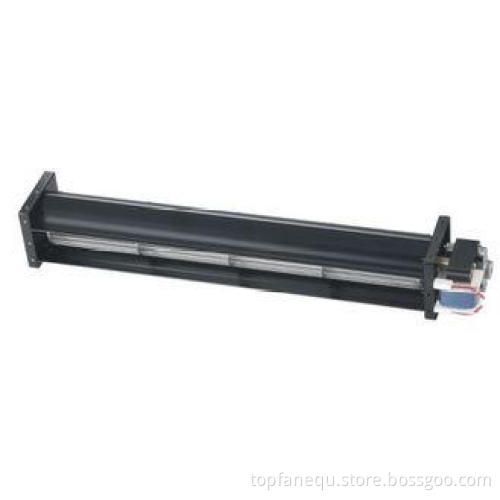

2000rpm 110V Cross Flow Fans Equipment Cooling Fans 50mm x 190mm
50x190mm AC Cross Flow Fans , high air flow and long life expectancy , are widely used in ventilating Elevator, as well as industrial production equipment, medical equipment, home appliances, etc.
Specification
| Model 50F | Size(mm) | Rated voltage |
Rated Frequency |
Rated Current |
Input Power |
Speed | Max Static Pressure |
Air Flow | Noise Level | Weight | ||
| A | B | C | (v) | (Hz) | (A) | (w) | (rpm) | (mmAq) | (m3/mim) | (dB-A) | (g) | |
| LRE50090A11 | 98 | 108 | 162 | 110 | 60 | 0.12 | 10 | 2650 | 3.6 | 1.1 | 39 | 610 |
| LRE50090A22 | 220 | 50 | 0.7 | 12 | 2500 | 2.7 | 1 | 36 | ||||
| LRE50190A11 | 198 | 208 | 267 | 110 | 60 | 0.21 | 16 | 1800 | 4.1 | 1.7 | 37 | 770 |
| LRE50190A22 | 220 | 50 | 0.06 | 14 | 2100 | 3.1 | 1.8 | 41 | ||||
| LRE50290A11 | 298 | 308 | 377 | 110 | 60 | 0.32 | 24 | 2100 | 4.3 | 2.7 | 41 | 1100 |
| LRE50290A22 | 220 | 50 | 0.14 | 21 | 2250 | 3.1 | 2.8 | 44 | ||||
| LRE50350A11 | 358 | 368 | 437 | 110 | 60 | 0.33 | 23 | 2000 | 4.3 | 2.9 | 42 | 1200 |
| LRE50350A22 | 220 | 50 | 0.15 | 20 | 2200 | 3.5 | 3.1 | 40 | ||||
| LRE50420A12 | 420 | 430 | 495 | 110 | 60 | 0.28 | 24 | 1300 | 4.1 | 2.31 | 50 | 1350 |
| LRE50420A24 | 220 | 50 | 0.25 | 29 | 1800 | 3.8 | 3.23 | 51 | ||||
