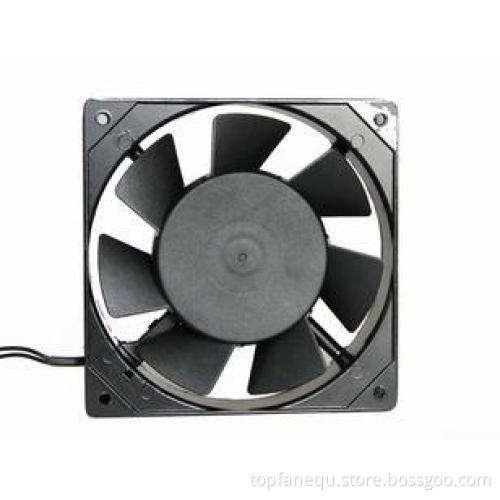

120mm x 25mm 7 Blade AC Brushless Fans Electronic Equipment
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
220V AC Brushless Fans / 120x120x25mm fridge Fan , AC Ventilation Fan
220V 120x120x25mm AC Cooling Fan, low noise and long life expectancy , are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.
Description:
- 220V AC FAN,used for cooling and ventilation.
- Frame:Aluminum ADC-12,Painted Black
- Impeller:Plastic With 7 Blades
- Stator& Rotor:Silicon steel
- Magnet Wires:Copper 1 PEW
- Bobbin:PA-66 UL 94 V-0
- Bearing Type:Ball Bearing
Specification
|
Model |
MX12025ABH22 |
|
Outline Dimension |
120x120x25mm |
|
Rated Voltage |
AC 220V |
|
Voltage Range |
AC 200V~240V |
|
Frequency |
50/60Hz |
|
Rated Current |
0.09/0.07A±10% |
|
Power Consumption |
16/14W±10% |
|
Speed |
2200/2500RPM±10% |
|
Max. Air flow |
33/40CFM±10% |
|
Max. Static Pressure |
0.12/0.14Inch-H2O |
|
Noise Level |
33/40dB(A) |
|
Weight |
338g |
|
Dielectric Strength |
1800V/0.5mA/3s |
|
Temperature Test of Run |
t=<70K |
|
Locked Rotor Protection |
t=<130K |
|
Environmental Specification |
Operating Temperature:-20℃~85℃ Operating Humidity:20%~85%RH Storage Temperature:-30℃~140℃ Storage Humidity:20%~95%RH |
