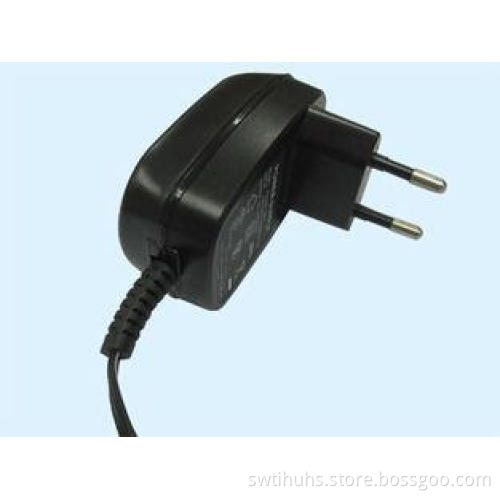

Plug In AC To DC Power Supply Adapter 5V 0.2A , Network Pla

Electronics Specification:

Input Voltage Range:

90~264V ac

AC current:

0.2A

Frequency:

50/60Hz

Inrush Current:

30A/230Vac

Leakage Current :

0.25mA/240Vac

Output :

5V 1.5A

Voltage tolerance:

±5%

Line regulation:

±1%

Load regulation:

±5%

Efficiency:

Meet energy star level V(CEC)

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

UL, CE, FCC, C-TICK,CB

Mechanical Characteristics :

Size:

65mm*40mm*32mm (L*W*H)

AC connector

US type

DC Cable:

1.8M

DC connector:

5.5*2.1*12mm, other type connector avaible

Model No.

Voltage

Current range

Ripple & Noise

Eff.

P033W2000E

3.3V

0.1~2.0A

50mV

>65%

P050W1000E

5.0V

0.1~1.0A

50mV

>72%

P050W1500E

5.0V

0.1~1.5A

50mV

>72%

P060W1250E

6.0V

0.1~1.25A

60mV

>72%

P075W1000E

7.5V

0.1~1.0A

75mV

>72%

P090W0830E

9.0V

0.1~0.83A

90mV

>72%

P120W0625E

12.0V

0.1~0.625A

120mV

>75%

P150W0500E

15.0V

0.1~0.50A

150mV

>75%

P190W0400E

19.0V

0.1~0.40A

190mV

>75%

P200W0375E

20.0V

0.1~0.375A

200mV

>75%

P220W0340E

22.0V

0.1~0.34A

220mV

>75%
