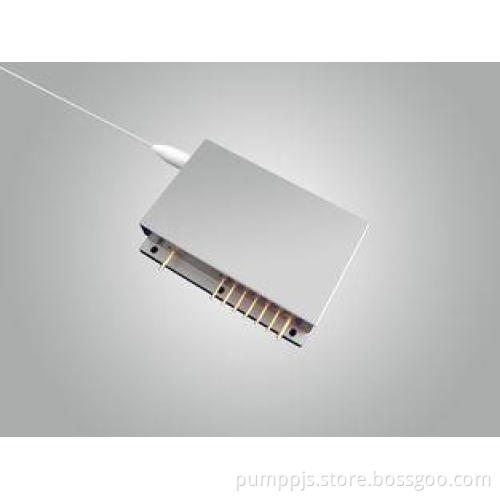

793nm 15W Pump Laser Diode 105µm Fiber Core For 2µm Fiber Laser Pumping
Features:
105µm fiber core diameter
0.22N.A.
15W output power
793nm wavelength
1900nm-2100nm feedback protection
Applications:
Tm doped fiber laser pumping
Solide-state laser pumping
|
Specifications(25℃) |
Symbol |
Unit |
K793DA6RN-15.00W |
|
|
Optical Data |
CW-Output Power |
Po |
W |
15 |
|
Center Wavelength |
λc |
nm |
793 |
|
|
Tolerance of λ |
- |
nm |
±3 |
|
|
Spectral Width (FWHM) |
△λ |
nm |
<3 |
|
|
Fiber Data (1) |
Fiber Core Diameter |
Wc |
µm |
105 |
|
Numerical Aperture |
N.A. |
- |
0.22 |
|
|
Fiber Connector |
- |
- |
SMA-905 |
|
|
Electrical Data |
Operating Current |
Iop |
A |
2.2 |
|
Threshold Current |
Ith |
A |
0.5 |
|
|
Slope Efficiency |
ηD |
W/A |
8.8 |
|
|
Operating Voltage |
Vop |
V |
18.0 |
|
|
Reverse Voltage |
Vre |
V |
- |
|
|
Others |
Operating Temperature |
Top |
℃ |
10~40 |
|
Storage Temperature |
Tst |
℃ |
-20~+70 |
|
|
Expected Lifetime |
MTTF |
h |
>10,000 |
|
|
Dimensions (fiber and connector not included) |
- |
mm |
82.0×62.0×25.0 | |
|
Lead Soldering Temperature |
Tis |
℃ |
260(10 sec.) |
|
Other fibers available upon request.
