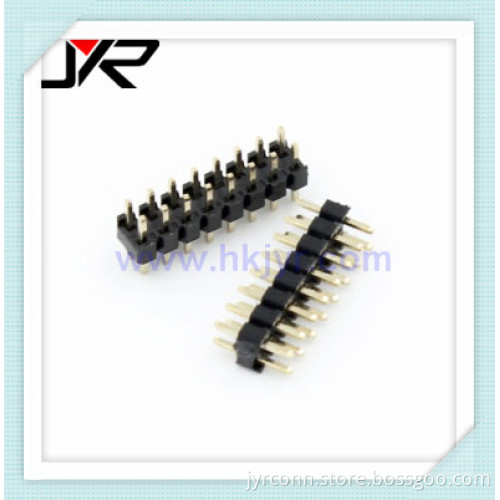

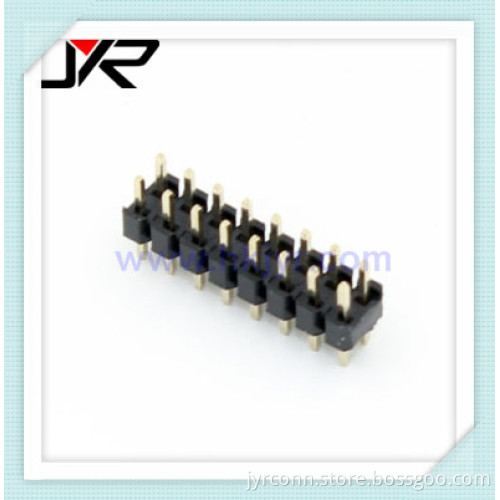

2.54mm pin header connector
- Payment Type:
- T/T, Western Union
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000000 |
| Supply Ability: | 100000 |
| Payment Type: | T/T,Western Union |
| Transportation: | Ocean,Land,Air |
Product details
Pitch: 2.54mm
Gender: Header
Number of contacts: 02-80 pin
Mount type: Through hole
Number of Rows: Dual row
Elevated: No
Orientation: Straight
Square Pin Diameter: 0.64mm
Insulator colour: Black
Without locating peg
Current Rating: 3 Amp
Insulator Resistance: 1000 MΩ min
Contact Resistance: 20 MΩ max
Dielectric Withstanding: AC 500V
Operating Temp.: -40℃ to +105℃
Contact Material: Copper Alloy
Soldering Process:
PA6T(Standard)
IR Reflow: 260℃ for 10 seconds
Wave: 230℃ for 5-10 seconds
Manual Solder: 350℃ for 3-5 seconds
PBT(OPTION) Manual Solder: 350℃ for 3-5 seconds (Not suitable for HI-TEMP process) WAVE:230℃ for 5-10 seconds PA9T/LCP(Option)
IR Reflow: 260℃ for 10 seconds
Wave: 250℃ for 5-10 seconds
Manual Solder: 350℃ for 3-5 seconds
