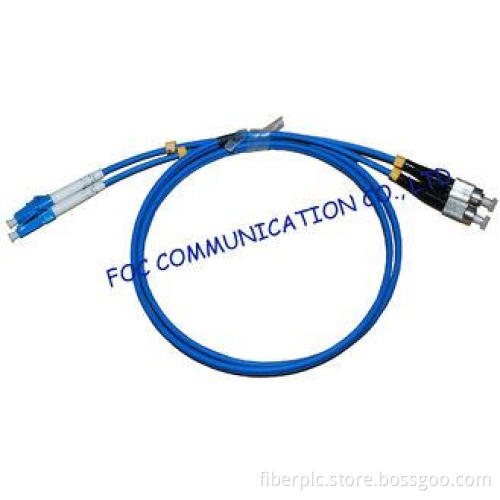

Armored LSZH Fiber Optic Patch Cable LC - FC Duplex Anti rodent
FOC COMMUNICATION CO., LTD is the professional manufacture of fiber optic components. We produce the whole series fiber optic patc cord, including breakout cable patch cord, ribbon fan out patch cord, indoor armored patch cord, outdoor armored patch cord, waterproof patch cord, OM3 and OM4 patch cord.
Fiber Optic Patch Cord is one piece of cable with connectors in both sides. If only one side assemble the connector, it is called fiber optic pigtail.
Cores: simplex, duplex, multi core patch cords.
Cable Jacket: PVC, LSZH, OFNR, OFNP
Cable outer diameter: 0.9mm, 2.0mm, 3.0mm
Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4
Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN
Endface type: UPC, APC
Descriptions
Armored fiber optic patch cord are used in indoor applications in customer premises, central offices and in harsh environments. The patch cord provide flexible interconnection to active equipment, passive optical devices and cross-connects. Armored patch cord are constructed with a stainless steel tube over a standard patch cord surrounded by a stainless steel mesh with an outer jacket. They are terminated with standard range of connectors, all quality tested to international standards.
Features
Conform to IEC, IEA-TIA, and Telecordia performance requirements
Easy installation
Available in different fiber types
Available in standard and custom length
RoHS compliant
Applications
Telecommunication Networks
CATV
LAN and WAN
FTTX
Broadband network
Military application
SPECIFICATIONS
Connector | FC, SC, ST, LC | |
UPC | APC | |
Insertion Loss | ≤0.3dB | |
Return Loss | ≥50dB | ≥60dB |
Cable Outer Diameter(mm) | ￠0.9, ￠2.0, ￠3.0 | |
Durability | ≤0.3dB(1000 matings) | |
Interchangeability | ≤0.2dB | |
Operating Temperature | -40℃~+80℃ | |
Technical Test Data
Test item | Test condition |
Wet-resistance | Temperature:85ºC/relative humidity 85%/14days/insertion loss≤0.1dB |
Temperature change | Temperature: -40ºC~+75ºC/relative humidity 10%-80% /42 repetitions/14days/ insertion loss≤0.1dB |
Water resistance | Temperature: 43ºC, /PH5.5,/ 7days /insertion loss≤0.1dB |
Vibrancy | Swing 1.52mm/frequency 10Hz~55Hz,/ X,Y,Z three directions:2 hours /insertion loss≤0.1dB |
Load bend | 0.454kg load/100circles insertion loss≤0.1dB |
Load torsion | 0.454kg load/10 circles insertion loss ≤0.1dB |
Tensility resistance | 0.23kg pull (nakedness fiber),1.0kg(with shell ) insertion≤0.1dB |
Strike | High 1.8m,three directions ,8 in each direction/insertion loss≤0.1dB |
Reference standard | Bellcore TA-NWT-001209 insertion loss≤0.1dB |
Rema Remark: The load bend and load torsion not suitable for 0.9mm patch cord or pigtail.
Order Ordering information
Interface | Connector | Length | OD | Color of jacket | Jacket | Fiber Type | Cores |
P-PC | FC-FC | 1M | 0.9mm | B-Black | P-PVC | SM | Simplex |
U-UPC | SC-SC | 3M | 1.6mm | Y-Yellow | L-LSZH | MM 50/125um | Duplex |
A-APC | LC-LC | 5M | 1.8mm | W-White | OFNR | MM 62.5/125um | 4cores |
| ST-ST | 10M | 2.0mm | Customized | OFNP | MM OM3 | 6cores |
| MU-MU | Customized | 3.0mm |
| Customized | MM OM4 | 8cores |
| MTRJ-MTRJ |
| Customized |
|
|
| 12cores |
| E2000-E2000 |
|
|
|
|
| 24cores |
| DIN |
|
|
|
|
| Customized |
| Customized |
|
|
|
|
|
|
