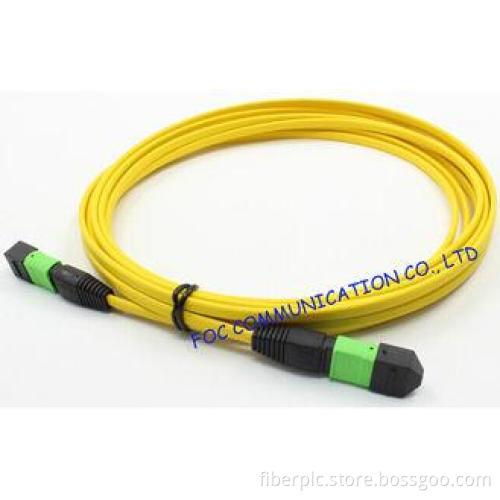

Ribbon Fan Out MPO Multimode Fiber Optic Patch Cord Assembly FTTX
We supply fiber optic patch cord, fiber optic patch cable, LC,SC/APC,ST, E2000/APC, MU, VF45, FC, MT-RJ, SC, MPO, Volition, MTP, FC/APC, ST/APC, LC/APC, E2000, DIN, D4, SMA, Escon, FDDI, RoHS compliant, LSZH, Riser, Plenum, OFNR, OFNP, simplex, duplex, single mode, 9/125, SM, multimode, MM, 50/125, 62.5/125.
Fiber Optic Patch Cord Specifications
Standards: compliant with Telcordia and IEC
Types: single mode, multimode
Terminations: FC, SC, ST, MU, LC, D4, DIN, E2000, MT-RJ, MPO, SMA, E2000, FDDI, and ESCON
Insertion Loss (dB): less than 0.3 (PC and UPC)
Exchangeability: less than 0.2 dB
Tensile Strength: less than 0.2 dB (0 to15 kgf)
Temp. Range: (- 40 to +80 degree centigrade)
Fiber Optic Patch Cable Geometric Specification
Types: PC, UPC, APC,
Radius of Curvature: 10 to 25 mm, 5 to 15 mm
Apex Offset: ≤50 um, ≤100 um
Fiber Spherical Height: -90 nm, +50 nm
Angular Offset: 8°± 0.5°C (APC)
Features of fiber optic patch cord
1. Low insertion loss and High Return Loss
2. Fully compliant with standards of IEC and YD-T826/1996
3. Temperature stability: Operating temperature: -20 to +75°C
4. High durability, more than 500 times mating.
5. Individual package with detail information label.
6. All patch cords are 100% tested
SPECIFICATIONS
Connector | FC, SC, ST, LC | |
UPC | APC | |
Insertion Loss | ≤0.3dB | |
Return Loss | ≥50dB | ≥60dB |
Cable Outer Diameter(mm) | ￠0.9, ￠2.0, ￠3.0 | |
Durability | ≤0.3dB(1000 matings) | |
Interchangeability | ≤0.2dB | |
Operating Temperature | -40℃~+80℃ | |
Technical Test Data
Test item | Test condition |
Wet-resistance | Temperature:85ºC/relative humidity 85%/14days/insertion loss≤0.1dB |
Temperature change | Temperature: -40ºC~+75ºC/relative humidity 10%-80% /42 repetitions/14days/ insertion loss≤0.1dB |
Water resistance | Temperature: 43ºC, /PH5.5,/ 7days /insertion loss≤0.1dB |
Vibrancy | Swing 1.52mm/frequency 10Hz~55Hz,/ X,Y,Z three directions:2 hours /insertion loss≤0.1dB |
Load bend | 0.454kg load/100circles insertion loss≤0.1dB |
Load torsion | 0.454kg load/10 circles insertion loss ≤0.1dB |
Tensility resistance | 0.23kg pull (nakedness fiber),1.0kg(with shell ) insertion≤0.1dB |
Strike | High 1.8m,three directions ,8 in each direction/insertion loss≤0.1dB |
Reference standard | Bellcore TA-NWT-001209 insertion loss≤0.1dB |
Rema Remark: The load bend and load torsion not suitable for 0.9mm patch cord or pigtail.
Orde Ordering information
Interface | Connector | Length | OD | Color of jacket | Jacket | Fiber Type | Cores |
P-PC | FC-FC | 1M | 0.9mm | B-Black | P-PVC | SM | Simplex |
U-UPC | SC-SC | 3M | 1.6mm | Y-Yellow | L-LSZH | MM 50/125um | Duplex |
A-APC | LC-LC | 5M | 1.8mm | W-White | OFNR | MM 62.5/125um | 4cores |
| ST-ST | 10M | 2.0mm | Customized | OFNP | MM OM3 | 6cores |
| MU-MU | Customized | 3.0mm |
| Customized | MM OM4 | 8cores |
| MTRJ-MTRJ |
| Customized |
|
|
| 12cores |
| E2000-E2000 |
|
|
|
|
| 24cores |
| DIN |
|
|
|
|
| Customized |
| Customized |
|
|
|
|
|
|
Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
