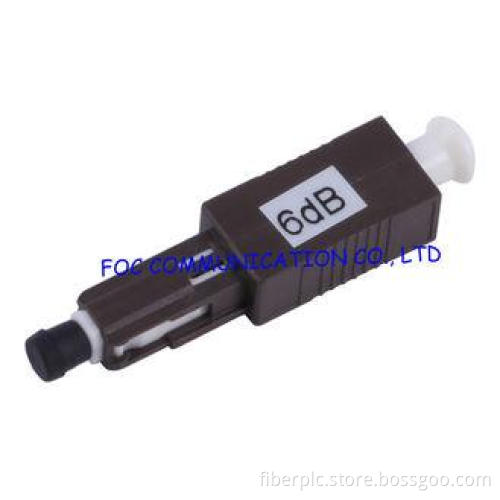

Female to Female FTTX MU Optical Fiber Attenuator 0dB to 25dB

MU Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. And it is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.

Features
Professional Manufacturer
High precision attenuation value
Precision control of attenuation range
Wide attenuation range
Precision ceramic ferrule
Plastic or metal housing material
FC, SC, ST, LC … optional

Application


Fiber optical telecommunication system
Fiber optical CATV
Fiber optical sensor
Testing equipment

Specifications

Optical Performance

M-F Plug Type/ In line Type

F-F Adaptor Type

Operating Wavelength

SM 1260-1600nm MM 1260-1320nm

Testing Wavelength

SM: 1310nm / 1550nm

1310nm

MM: 850nm / 1300nm

Attenuation Accuracy

1-9 dB 0.5dB
10-30dB 10%of Attenuation Value

Attenuation Range

1-10dB(1dB step), 15, 20, 25, 30dB

Return Loss

≥45 dB (PC)

N/A

≥50 dB (UPC)

≥ 60 dB (APC)

Input Power (Max.)

200mW

Durability

<0.20 dB Typical, 1000 matings

Operating Temp.

- 20 ~ +75°C

Storage Temp.

-40 ~ +85°C

Ordering Information

Attenuation

01:1dB, 02: 2dB, 03:3dB, 30:30dB

Type

Male to Female, Female to Female

Connector Type

FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, X=Others

Fiber Optic Attenuator, Optical Fiber Attenuator, Fiber Attenuators
