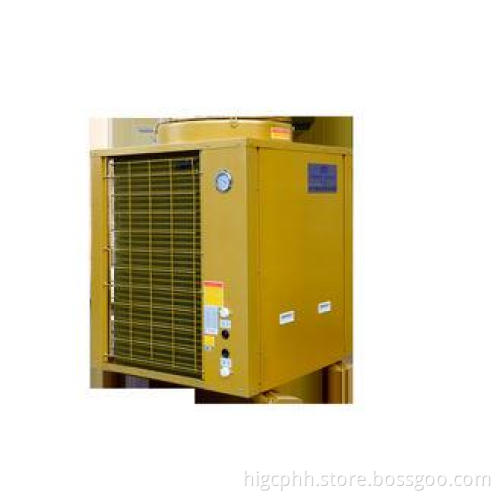

Portable High Temperature Air Source Split System Heat Pump

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

14KW high temperature heat pump for drying Specifications:

Specifications:

High temperature heat pump for drying .
Model		Unit	PW050-KFXHG(GW)		PW050-KFXHG (GW)			PW100-KFXHG (GW)
Rated input power		KW	4.3		4.3			8.5
Heating capacity		KW	14		14			28.9
Rated current		A	8.1		8.1			16.2
Max input power		KW	6.4		6.4			12.8
Max current		A	12.1		12.1			24.3
Max outlet water temp		℃	80
Rated outlet water temp		℃	85
Ambient temperature range		℃	5---43
Noise		db	≤56	≤56			≤60
Weight		kg	180	180			340
Level of protection			IPX4	IPX4			IPX4
Electric shock proof grade			I	I			I
cabinet			Galvanized sheet
Unit dimension	mm		8008101100			8008101100			15007501070
Power supply			380V~415V/50Hz/3ph
Protection function			Tempreature protection, time protection, water flow protection, antifreeze protection, current protection
Package			Plywood case
working mode			heating mode
Remarks:
●Working range:source side water inlet temp: 5℃-43℃
●Rated workong condition: When the environment dry/wet bulb temperature is 20/15℃,drying room temperature heating from 20℃ to 80℃.

Description:
1. Environmental friendly and safe
Electric parts and water system is completely cut off, ensuring security water use, no pollution to the atmosphere
and free of greenhouse effect and it is the safest water heater

2. Wide climatic zone adaptability
Our heat pumps with special designing possess better climatic adaptability, can work from -25degrees to 43degrees.

3. Energy-saving
Heat pump water heater is a high efficient transferring heating equipment which is driven by electricity. The
operating cost is only 1/4 of electric water heater, 1/3 of gas water heater.

4. Automatic intelligent control system
Adopting intelligent computerized automatic control system, no manual cost, easy to operate, convenient, make
heat pump work safely and reliably.
Control panel with modularized unit design can control more flexible heat pumps packs, with user-friendly
operating system interface, easy to operate..

5. Advanced testing methods
Adopting world-class Enthalpy potential laboratory to test heat pumps, except basic testing items, we also test
heat pump in the ambient of temperature of -30â„ƒ to test our heat pump performance.

6. Widely used
Heat pump is applied to hot water for household and commercial use like families, schools, hospitals, shower center, swimming pools, etc. and industrial use like electroplating, drying, etc.

Applications:

Business Organizations	supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations	Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places	subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments	Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
