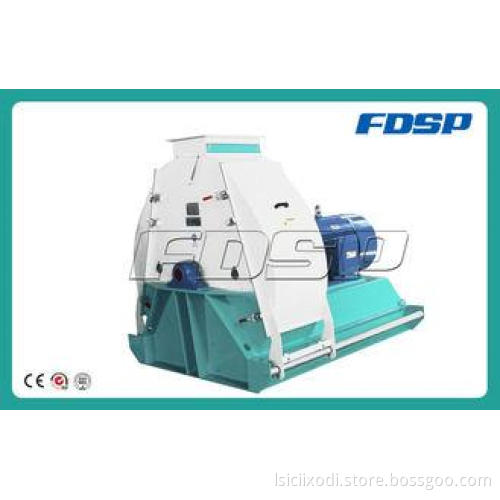

SFSP999 Tear Circle Raw Material Hammer Mill Machine
Performance Parameter
|
Model |
Dia. Of Rotor |
Width Of Grinding Chamber (mm) |
Speed Of Rotor |
Power |
Output |
|
SFSP999-Ⅰ |
1380 |
400 |
1480 |
90 |
15-20 |
|
SFSP999-Ⅱ |
1380 |
500 |
1480 |
110 |
20-30 |
|
SFSP999-Ⅲ |
1380 |
600 |
1480 |
132/160 |
30-40 |
|
SFSP999-Ⅳ |
1380 |
800 |
1480 |
180/200 |
40-50 |
Re: The above indices are those when meeting the following conditions: raw material: corn, moisture content not higher than 14%, density not lower than 0.72t/m3, screen: hole diameter ￠3mm, hole-opening rate not less than 33%.
Product Feature
1.The grinding chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2.The Bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity with evener particle size;
3.Rotor passes accurate dynamic balancing test, resulting in low equipment noise and smooth running.
4.Both coarse and fine grinding is realized through adjusting the gap between beater and screen;
5.New type S shape coupling directly connecting driving results in big offset travel and effectively avoid the heating of bearing;
6.Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7.The imported products are used for key parts, resulting in long service life and low maintenance cost.;
8.The moving full-wide operation door facilitates maintenance and replacing of beater;
9.SFSP999 Tear Circle Hammer Millis widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc.
