Multifunctional Grinding Hammer Mill Machine With 1200mm Ro
  • Multifunctional Grinding Hammer Mill Machine With 1200mm Ro
Multifunctional Grinding Hammer Mill Machine With 1200mm Ro

Multifunctional Grinding Hammer Mill Machine With 1200mm Ro

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Product Description
Product Description

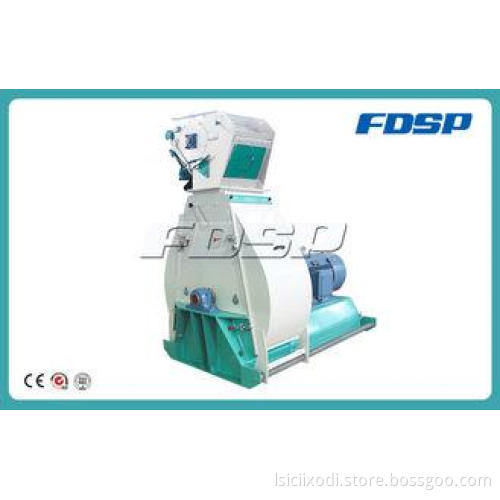

Multifunctional Grinding Hammer Mill Machine With 1200mm Rotor Dia


Product Feature


1. The grinding chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2. The Bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity with evener particle size;
3. Rotor passes accurate dynamic balancing test, resulting in low equipment noise and smooth running.
4. Both coarse and fine grinding is realized through adjusting the gap between beater and screen;
5. New type S shape coupling directly connecting driving results in big offset travel and effectively avoid the heating of bearing;
6. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7. The imported products are used for key parts, resulting in long service life and low maintenance cost;
8. The moving full-wide operation door facilitates maintenance and replacing of beater;
9. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc.

Performance Parameter

Model SFSP998-Ⅰ SFSP998-Ⅱ SFSP998-Ⅲ SFSP998-Ⅳ
Dia. Of Rotor(mm) 1200 1200 1200 1200
Width Of Grinding Chamber (mm) 300 400 500 600
Speed Of Rotor(rpm) 1480 1480 1480 1480
Power(kw) 55/75 90/110 110/132/160 180/200/220
Output(t/h) 10-15 12-20 25-35

38-50
