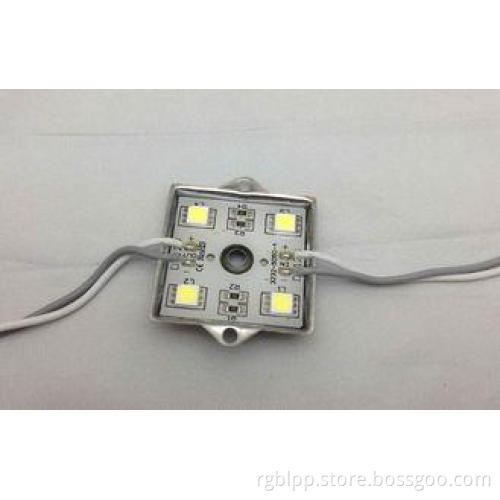

DC 12V 4 SMD 5050 LED Sign Modules For LED Channel Letter CE ROHS
Quick Detail:
1, High quality and brightness Brand LED CHIP
2, More than 24 hrs age tesing
3, More than 5 times quality testing before shipping
4, CE,ROHS
5, 3 Years’warranty
Description:
1. 4 SMD 5050 LED
2. 40pcs/chain,working voltage: DC12V
3. CE ROHS Certificateds
4. 3 Years’warranty
Applications:
1. LED Lighting for led sign box,led channel letter
2. LED Lighting for edge lighting,outline lighting,Stage Lighting
3. LED Backlight Lighting
Specifications :
| Parameter | Symbol | Condition | Range | Unit | ||||||
| Voltage of power supply | VDD | Direct current | 12 | V | ||||||
| Working temperature | Top | DC12V,50%RH | -20~+40 | ℃ | ||||||
| Working humidity | B | DC12V,25℃ | 98 | %RH | ||||||
| Viewing angle | 2θ1/2 | 120 | ° | |||||||
| Basic color | Color | 4LEDsingle color | red,green,blue,yellow,white | |||||||
| Light ettenuation rate (1000H) | —— | DC12V,25℃ | 5~8 | % | ||||||
| Internal Protection | IP | IP67 | ||||||||
| Weight | Nw | Single module | 10.5 | g | ||||||
| Drilling size | D | —— | —— | MM | ||||||
| Length of the wire | Ls | general | 100 | MM | ||||||
| Material of the shell | Stainless steel | |||||||||
| Color of the shell | Metal-white | |||||||||
| Gasket cement | epoxy resin/silicone | |||||||||
| Accessory | 12v DC power supply(Please choose a suitable power supply according to the total power) | |||||||||
| Serial Producdt | ||||||||||
| Model No | Color | Appearance | Luminance(mcd/pcs) |
wavelength Colortemperature |
Power (w/pcs) | |||||
| Max | Min | |||||||||
| XH-126MCS54AR | red | 50508 SMD | 6000 | 4000 | 620~630nm | 1.44 | ||||
| XH-126MCS54AY | yellow | 8000 | 6000 | 585~595nm | ||||||
| XH-126MCS54AB | blue | 4000 | 2800 | 455~470nm | ||||||
| XH-126MCS54AG | green | 12000 | 10000 | 510~525nm | ||||||
| XH-126MCS54AW | white | 20000 | 16000 | 6500~7000K | ||||||
Competitive advantages:
1. More than nine years’experience in designing and producing led module
2. More than 30 customers who have kept purchasing from our factory more than 5years
3. Compared to our factories,same price,we have the better quality;same quality,we have the cheaper price.
4. Small MOQ, Short delivery time,3 years’ warranty.
