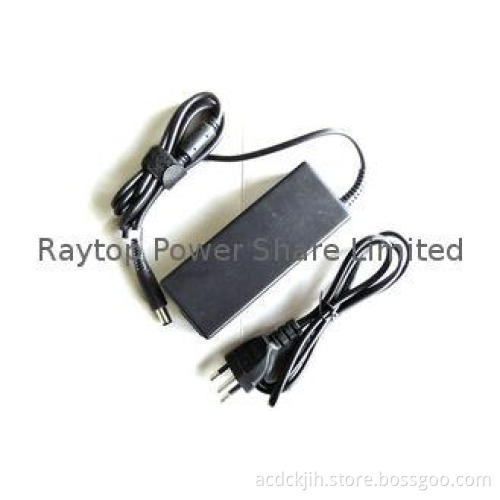

High Efficency Replacement Laptop Power Adapter DC19V 5.5x2.1mm For Acer
Quick Detail:
Replacement laptop AC adapter 19.0V, 3.42A for Acer notebook, connector size: 5.5x2.1mm.
Specs:
Input: AC100-240V, 1.2A max.
Output: 19.0V 3.42A
Rated output power: 65W
AC Cable: EU, UK,US, SAA, BR for optional
DC Cable: 20AWG, Copper, length: 1.2M
Features:
- High efficiency, up to 80%;
- Protection: Short circuit protection, over voltage protection, over current protection.
- MTBF: 50,000 hours.
Approval: CE, RoHS, FCC
Warranty: 1 years
Contents: 1 Adapter + 1 AC Cable
Description:
This is a replacement laptop adapter, with single output 19.0V, 3.42A, power 65Watt. The connector size is 5.5x2.1mm. This adapter has equivalent quality with the original adapters, but much cheaper than the later one. It is an idea choice when the original laptop adapter is broken.
Applications:
replacement laptop adapter to substitute original adapter when it stop work as normal.
Specifications:
|
Input |
Rated Input Voltage |
AC100~240V |
|
Input Voltage Range |
AC 90~264V |
|
|
Rated Frequency |
50/60 Hz |
|
|
Input Frequency Range |
47~63 Hz |
|
|
Input AC Current |
1.2A |
|
|
Inrush Current |
30A |
|
|
Output |
Rated Output Voltage |
DC19.0V |
|
Output Voltage |
DC19.0V+/-0.5V |
|
|
Rated Output Current |
3.42A |
|
|
Rated Power |
65W |
|
|
Ripple and Noise |
120mV p-p |
|
|
Standby Power Consumption |
0.5W |
|
|
Turn-on |
5s |
|
|
Hold-up |
20s |
|
|
Over Voltage Protection |
Yes |
|
|
Over Current Protection |
Yes |
|
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
|
Reliability |
Hi-pot |
3000Vac |
|
Insulation Resistance |
Input to output at 500Vdc |
|
|
Leakage Current |
5mA |
|
|
EMI Standards |
FCC Part 15B Class B |
|
|
RoHS Compliant |
Yes |
|
|
MTBF |
50,000 hours |
|
|
Burn-in |
40+/-5 ℃, full load, 12 hours |
|
|
Drop Test |
6 direction, each one time from height 1.0M |
|
|
Environmental |
Operating Temperature |
0~40℃ |
|
Operating Humidity |
10~80% |
|
|
Storage Temperature |
-20~65℃ |
|
|
Storage Humidity |
0~90% |
|
|
Safety Approvals |
CE, RoHS, FCC |
|
|
Warranty |
1 Years |
|
