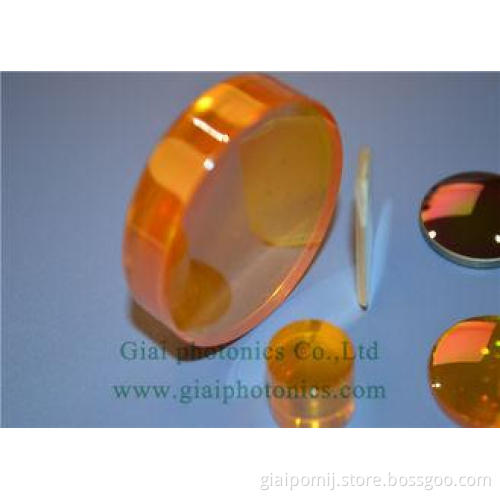

Znse Window Zinc Selenide Lens ZnSe Lens Laser Machine Znse Optical Window
Znse Window
Specifications:
|
Diameter (mm) |
10.0 |
|
Diameter Tolerance (mm) |
+0.0/-0.1 |
|
Clear Aperture (%) |
90 |
|
Thickness (mm) |
1.5-10 |
|
Thickness Tolerance (mm) |
±0.1 |
|
Surface Accuracy |
1/10 @ 10.6μm |
|
Surface Quality |
60 - 40 |
|
Parallelism (arcminutes) |
<1 |
|
Density (g/cm3) |
5.27 |
|
Knoop Hardness (kg/mm2) |
120 |
|
Substrate |
CVD Laser Grade ZnSe |
|
Coating |
Uncoated |
|
Type |
Protective Window |
|
Wavelength Range (μm) |
0.6 - 18.0 |
|
RoHS |
Compliant |
Description:
Znse Windows are ideal for a wide variety of infrared applications including thermal imaging, FLIR, and medical systems. This chemically vapor deposited material has wide usage in high power CO2 laser systems because of its low absorption coefficient and high resistance to thermal shock. Zinc selenide (ZnSe) is a relatively soft material that scratches easily and it is not recommended in harsh environments because its Knoop Hardness is only 120. When handling, apply uniform pressure and wear Latex finger cots or gloves to prevent contamination.
