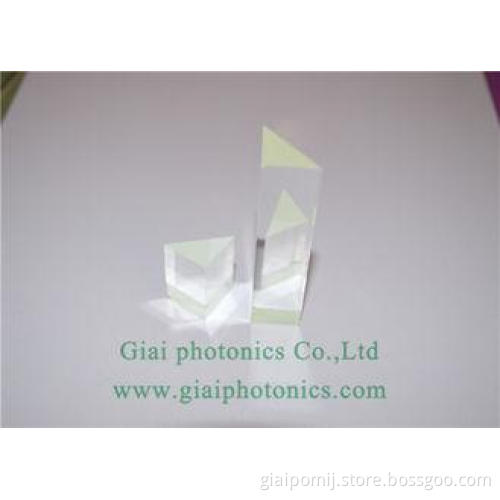

Precision Optical Prism Penta Prisms For Alignment Optical Tooling
Penta Prisms
Specifications:
|
Dimensional Tolerance (mm) |
±0.10 |
|
Surface Accuracy (λ) |
¼ |
|
Surface Quality |
60 - 40 |
|
Angle Tolerance (arcminutes) |
±5 |
|
Bevel |
Protective bevel as needed |
|
Substrate |
N-BK7 |
|
Coating |
VIS 0° & Aluminized |
|
Typical Energy Density Limit |
Entrance & Exit Faces: 5 J/cm2 @532nm, 10ns |
|
Wavelength Range (nm) |
425 - 675 |
|
Type |
Penta Prism |
|
Ray Deviation (°) |
90 |
|
Image Orientation |
Right-Handed |
|
Coating Specification |
Entrance & Exit Faces: Ravg ≤0.4% @ 425 - 675nm |
|
RoHS |
Compliant |
Description:
Penta Prisms are used to define right angles in optical systems. Penta Prisms, which provide right handed images, feature a ray deviation of 90°. Penta Prisms are five-sided prisms are unaffected by slight movements. GIAI Optics offers a variety of Penta Prisms for optimal performance in the Ultraviolet (UV), Visible, or Infrared (IR) spectrums.
GIAI Optics features the world’s largest inventory of off-the-shelf optical components, including a wide range of Prisms. GIAI Optics’ Penta Prisms are offered mounted or unmounted, or in N-BK7 or UV Fused Silica Substrates. C-Mounted Penta Prisms are ideal for easy integration into C-Mount systems. These Prisms are mounted in black, anodized aluminum housings with two female C-Mount apertures. N-BK7 Penta Prisms, which are ideal for applications in the visible spectrum, are offered in a range of sizes or anti-reflection coating options, including MgF2 or VIS 0°. UV Fused Silica Penta Prisms are offered uncoated or with a UV-AR anti-reflection coating. UV Fused Silica Penta Prisms are ideal for applications in the Ultraviolet (UV), Visible, or Near-Infrared (NIR).
Penta prisms are five-sided prisms featuring a ray deviation of 90° and a right handed image. The reflecting surfaces are aluminized for increased efficiency. Slight movement of the prism does not affect the true right angle at which light rays are reflected, making a penta prism the ideal optical tool for defining a right angle in an optical system. N-BK7 Penta Prisms are made from precision N-BK7 for use in a variety of visible light applications.
Competitive Advantage:
Penta Prisms ,competitive price , good quality, delivery on time, providing perfect after-sales service, to provide customers with professional customized products of parameter. We will supply you with best solution.
