12.7mm Equilateral Prisms Optics Prism For Dispersion Compe
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

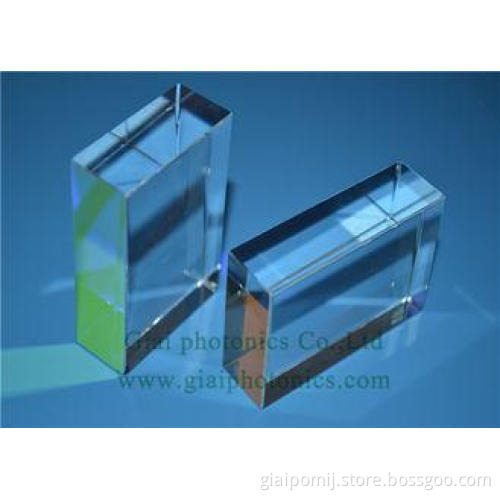

Dispersion Prisms Optical Prism For Dispersion Compensation Wavelength Tuning
Dispersion Prisms
Specifications:
|
Length (mm) |
12.7 |
|
Length of Face (mm) |
12.7 |
|
Dimensional Tolerance (mm) |
± 0.2 |
|
Clear Aperture (%) |
85 |
|
Surface Accuracy (λ) |
2 @ 632.8nm |
|
Surface Quality |
60 - 40 |
|
Angle Tolerance (arcminutes) |
±10 |
|
Substrate |
Calcium Fluoride (CaF2) |
|
Coating |
Uncoated |
|
Wavelength Range (μm) |
0.35 - 7.0 |
|
Type |
Equilateral Prism |
|
Image Orientation |
Dispersion |
|
RoHS |
Exempt |
Description:
Dispersion Prisms are used in applications that require separating the incident light into its component wavelengths. For example, when white light enters a Dispersion Prism, it is separated into its three components: red, green, and blue. Dispersion Prisms are ideal for spectroscopy or laser tuning.
GIAI Optics offers the world’s largest inventory of off-the-shelf optical components, including Dispersion Prisms. GIAI Optics’ Dispersion Prisms are available uncoated, or with reflection or anti-reflection coatings. Dispersion Prisms are also available in multiple substrates that are ideal for Infrared (IR) applications. Infrared (IR) substrates include Calcium Fluoride (CaF2), Germanium (Ge), or Zinc Selenide (ZnSe).
Calcium Fluoride (CaF2) is a low index material featuring excellent transmission from 0.19 - 7μm, ideal for use in the Ultraviolet (UV) through Infrared (IR). Germanium (Ge) is is a high index material, ideal for maximizing optical paths from 3 - 12μm. Zinc Selenide (ZnSe) is commonly used from 1 - 16μm, ideal for use with CO2 lasers.
Competitive Advantage:
Dispersion Prisms ,competitive price , good quality, delivery on time, providing perfect after-sales service, to provide customers with professional customized products of parameter. We will supply you with best solution.
