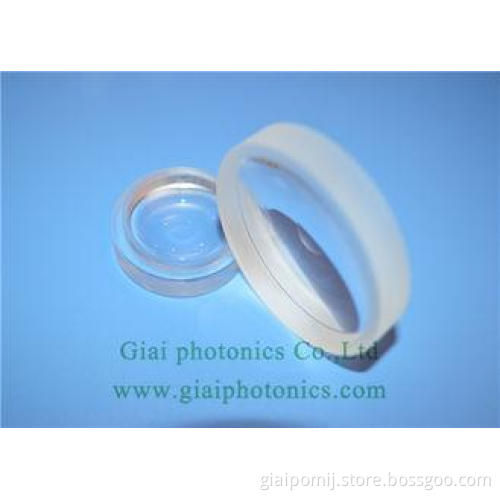

Uncoated 6mm Double Concave Lenses Optical Lenses With Substrate N-SF11 5.4mm CA
Double Concave Lenses
Specifications:
|
Diameter (mm) |
6.00 |
|
Diameter Tolerance (mm) |
+0.00/-0.10 |
|
Clear Aperture CA (mm) |
5.4 |
|
Effective Focal Length EFL (mm) |
-6.0 |
|
Back Focal Length BFL (mm) |
-6.41 |
|
Focal Length Tolerance (%) |
± 1 |
|
Radius R1=-R2(mm) |
-9.74 |
|
Edge Thickness ET (mm) |
2.29 |
|
Center Thickness CT (mm) |
1.50 |
|
Center Thickness Tolerance (mm) |
± 0.1 |
|
Centering (arcminutes) |
3 - 5 |
|
Surface Quality |
40 - 20 |
|
Bevel |
Protective bevel as needed |
|
Substrate |
N-SF11 |
|
Coating |
Uncoated |
|
f/# |
1 |
|
Numerical Aperture NA |
0.5 |
|
Type |
Double-Concave Lens |
|
Wavelength Range (um) |
0.4 - 2.5 |
|
RoHS |
Compliant |
Description:
Double Concave Lenses are used in beam expansion, image reduction, or light projection applications. These lenses are also ideal for expanding the focal length of an optical system. Double Concave Lenses, which have two concave surfaces, are Optical Lenses with negative focal lengths.
GIAI Optics offers the world’s largest inventory of off-the-shelf optical components, including a variety of standard or UV Fused Silica Double Concave Lenses. Standard lenses are available in several anti-reflection coating optics, including MgF2, VIS 0°, VIS-NIR, NIR I, or NIR II, for optimal performance in the Ultraviolet (UV), Visible, or Infrared (IR) regions. The UV Fused Silica substrate offers excellent transmission characteristics with high operating temperatures. UV Fused Silica Double Concave Lenses are ideal for laser or imaging applications. An optional UV-AR anti-reflection coating increases performance in the Ultraviolet (UV) spectrum. GIAI Optics’ Double Concave Lenses are available in a wide range of sizes or focal lengths.
Double-Concave (DCV) Lenses have two inward curved surfaces and a negative focal length. They are used for image reduction and to spread light.
