240v Insulated Monorail Electric Wire Rope Hoist With Adjus

240v Insulated Wire Rope Electric Monorail Hoist With Adjustable Speed

Specifications:

Rope reeving: 2/1, 4/1, 4/2, 6/1, 6/2,etc

Lifting speed: single speed, double speeds, frequency controlled speeds

General Lifting height: 4, 6, 9, 12, 15, 18, 24, 30m, the Max.lifting height could be 120m

Pendant control or remote control

Working duty: ISO:M3/M4/M5/M6,FEM:1Bm/1Am/2m/3m

Working Temperature: -25 – 50 degrees

Power Supply: 220-600V,50/60Hz

Detailed Product Description

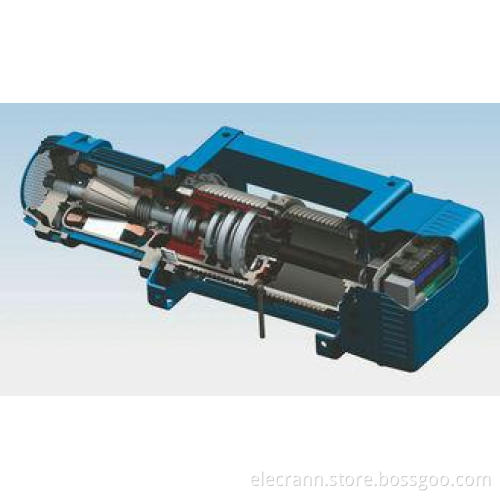

2t to 32ton Insulated electric wire rope hoist

It is developed by the technologies from Germany, with overload protection, overheating protection and phase relay

protection, its modular design can realize the seamless connection with frequency inverter, automatic weighing

system and automatic detection system, applicable for heavy industry.

Higher Security and Reliability

1. Brake and overload protection ensure the safety under any circumstance, no slip under load

2. IP54 of hoist frame and brake ensures the optimal corrosion resistance under harsh environment.

3. Up and down limit switch ensures the safe operation of the hook on the top and bottom position.

4. Low-voltage protection ensures the safe and reliable operation.
5. Efficient high lifting speed, smooth low lifting speed, precise positioning.

6. Euro design, compact structure.

7.The shell and pulley’s material of insulated hoist is nylon.

8.The weight switch is as the second up limit to ensure safety.
