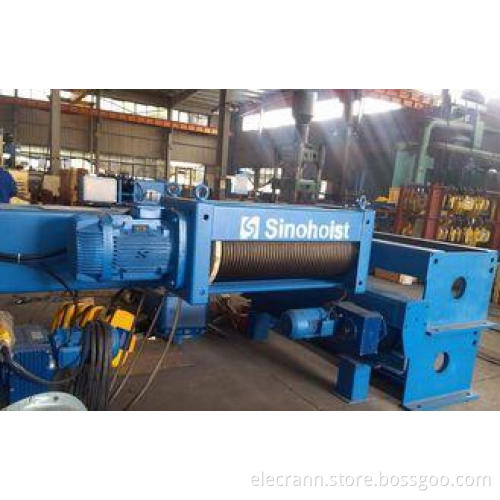

Modular Warehouse Industrial Electric Hoist Pendant Control

Double Girder Overhead Crane With Electric Wire Rope Hoist For Repair Workshop / Warehouse For Indoor /

Outdoor

Detailed Product Description

Description:

Double girder overhead industrial crane is characterized by strong bearing, big span, and overall stability with

various models, but their quality is better compared with single girder gantry crane with the same capacity. They

are available with load capacities up to 50T and with spans up to 35 m. Articulated end carriage joints ensure

positive contact of all four wheels with the track. The range of fixing arrangements allows the appropriate

integration of double girder travelling cranes into new buildings as well as into existing buildings. Just as with

all other types of double girder travelling cranes, the profiles of the main girder are optimally produced using

computers so that maximum performance with a minimum of dead-weight can be achieved. An advantage that

has financial benefits.

Double girder overhead crane with hoist are widely used in the following applications:

1. Light duty cranes for repair shops, light assembly operations, service buildings, light warehouses,

where service requirements are infrequent.

2. Medium duty cranes for machine shops and general industrial use both indoor and outdoor application.

3. Extra heavy duty cranes for steel mills and other heavy machine shops, steel warehouses, heavy

fabrication shops, paper mills etc. with magnet and bucket operation for scrap yards, fertilizer plants &

induction furnace.

4. Extra heavy duty cranes for steel mills and other heavy engineering purposes. Cranes designed for

hot metal application on request.

Design features include:

DESIGN:
Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits

between components

Structure:
Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required

100% radiography of all butt welding joints of bridge and end carriages can be provided.

MOTORS:
Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast

aluminum sections, integrated safety brakes insulation class F, IP54 protection.

Variable Frequency Drives & Remote Controls:
We also offer Variable Frequency Drive in hoisting, cross travel, long travel for stepless speed control as an

optional feature. We also provide radio remote control cranes for application in inaccessible and hazardous

areas.
Brakes
Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty

cranes a second brake can be mounted to ensure failsafe operation.
Controls
Pendant control from floor, master control switches, master controllers in the driver's cabin can be provided.

Radio remote control can be provided on request.

ELECTRICAL PANEL:
Modular design, covering a very wide operating range. The systems are designed for ease of installation and

maintenance and reliable operation, with fuseless circuitry, ducted wiring and non-screwed terminals. Each

drive group is equipped with a motor overload protection device to provide effective protection against

inadmissible overloading.

PAINTING:
Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two

coats of synthetic enamel after testing.

LIMIT SWITCHES:
To prevent over hoisting & over lowering of hook.
