Grade 12 Welded Titanium Tube Chemical Resistance For Bicyc
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu China |
|---|

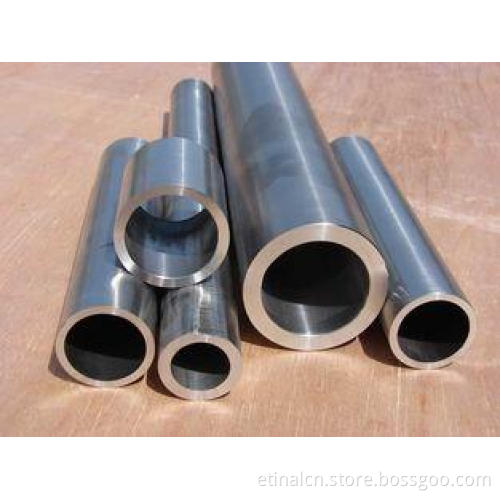

Grade 12 Welded Titanium Tube Chemical Resistance For Bicycle
Quick Details :
Welded Titanium Tube
titanium oil fitting pipe
Size: OD(6-219)mm*WT(0.5-10)mm*L(MAX 12000)mm
Material: Gr1,Gr2,Gr3,Gr5,Gr9,Gr12
Standard: ASTM B337/338/861,ASME SB338
Seamless Titanium Tube information:
1) Grade: Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, Gr12, Gr19, Gr23
2) Standard: ASTM B337 ASTM B338 ASTM B861
3) Allowable Deviation of Outer Diameter (mm)
|
Outer Diameter |
Allowable Deviation |
Outer Diameter |
Allowable Deviation |
|
3~10 |
±0.15 |
>50~80 |
±0.65 |
|
>10~30 |
±0.30 |
>80~100 |
±0.75 |
|
>30~50 |
±0.50 |
>100 |
±0.85 |
4). Allowable Deviation of Wall Thickness is not more than±10% of the Nominal WT
5). Allowable Deviation of Length(mm): L<12000
6). Curvature of Titanium Tube
|
Outer Diameter (mm) |
Curvature (mm/m, not more than) |
|
≤30 |
3 |
|
>30~110 |
4 |
7) OEM and customers’ designs are acceptable
Nickel(Ni), Zirconium(Zr), Niobium(Nb) etc
8) Final product test:
Ultrasonic test, Eddy current test, Hydraulic test, Bend test, Flaring test and so on.
Product other description:
-Processing technique: seamless
-The diameter of tube is more than 219mm and the max length is 12000mm
-Seamless titanium tube can be used in many different areas
-Brilliant quality, perfect service, reasonable price offered
ASME GR1/2 Mechanical Properties(Composion%)
|
Tensile Strength(Mpa) |
Yield Strength0.2%(Mpa) |
Elongation(%) |
|
460 |
325 |
25 |
We are the manufacturer that special in producing titanium tube and other titanium products.
We provide you the certifications to guarantee the quality.
We are so glad to establish long term business relationship with trade firms and end user.
If you are interested in our products, please feel free to contact us, we will try our best to meet your demand
Applications:
(1)Heat exchangers and condensers
(2)Corrosive fluid transmission pipeline system
(3)Titanium bicycle tube, automobile exhaust pipe
(4)Offshore aquaculture
Specifications:
|
Item Name |
Titanium Pipe |
|
Grade |
A1 TA2 TA3 TA9 TA18 Gr1 Gr2 Gr7 Gr9 Gr12 Gr16 3.7025 3.7035 3.7235 3.7195 3.7105 BT1-00 BT1-0 |
|
Standard |
GB/T3624 GB/T3625 ASTM B337 B338 B861 B862 ASME SB338 ASME SB337 ASME SB861 SB862 DIN17861 |
|
Dimension (MM) |
Φ10-Φ168 x0.5-10x 100-18000 MM |
|
Application |
heat exchanger coil pipe ; Condenser; petroleum pipeline ; Sea farming Evaporimeter;Fluid Transporation Piping etc. |
|
Inspection Equipment |
Nondestructive Tester; UT Testing Detector; Tensile Tester Digital Ultrasonic Detector; Infrared Tester; HV Hardness Tester |
|
Quality Guarantee: |
(1) Main quality indicators:Chemical composition, mechanical property, tolerance
(2) With advanced technology & equipment, abundant experiences and skilled workers,we process titanium material in accordance with the International standard
(3)With own R&D, Produce, Process and Sales system, we always struggling to supply the product with the most excellent quality and the most favorable price and the best service .
(4)The original Mill Test Certificate is available to attach to the delivery
(5)Warmly welcome you send inquiry to us! |
