Cold Rolled Seamless Titanium Tube Grade 7 With ASME SB 338
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu China |
|---|

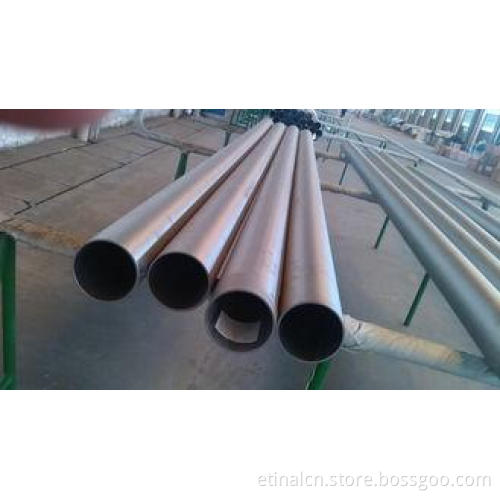

Cold Rolled Seamless Titanium Tube Grade 7 With ASME SB 338
Specifications:
1. Material:
GR.1, GR.2, GR.3, GR.7, GR.9, GR.12
2. Standard:
ASTM B337 B338 B861 B862 ASME SB338 ASME SB337 ASME SB861 SB862 DIN17861
3. Delivery time: 15~35 days
4. Package: in plywood case or according to your requirements
5. Processing technique: Cold rolled/Hot rolled/Forged
6. Features of titanium sheet:
7. high tensile strength;
8.high corrosion resistance;
9. low density, good thermal stability;
10.non-ferromagnetic;
11. good biocompatibility;
12.high temperature resistance;
13.low temperature resistance ;
high resistance to strong acid;
high resistance to strong alkali;
and so on.
SB 338 Gr.7 Titanium Tube Features:
1) Standards: ASTM B/ASME SB 338, 337 and 861 2) Gr.1, Gr.2, Gr.3, Gr.7, Gr.9 ETC, Gr
2) Seamless and welded pipe4) OD: 5-160mm; WT: 0.5-10mm; Length: less than 15 meters
3)Eddy Current Testing,Ultrasonic
4) We are checked by A&V,B&V,SGS
5) Used area:Heat exchangers and condensers
All kinds of corrosive fluid transmission pipeline system
Titanium bicycle tubes, automobile exhaust pipe
Offshore aquaculture
6) OEM and customers’ designs are acceptable
7) Final product test: Ultrasonic test, Eddy current test, Hydraulic test, Bend test, Flaring test and so on.
Grade Condition Manufacturing Method OD Wall Thickness Long Standard
|
Grade |
Condition |
Manufacturing Method |
OD |
Wall Thickness |
Long |
Standard |
|
Gr1 Gr2
|
Annealed |
Cold rolling Seamless |
10-15MM |
0.5-4.5 MM |
500-4000MM |
ASTM B337 ASTM B338 |
|
15-20MM |
0.6-2.5 MM |
500-9000MM |
||||
|
20-30MM |
0.6-2.5 MM |
|||||
|
30-40MM |
1.0-2.5 MM |
|||||
|
40-50MM |
1.5-3.0 MM |
|||||
|
50-60MM |
1.5-3.5 MM |
|||||
|
60-80MM |
2.0-4.5 MM |
|||||
|
Welded |
16MM |
0.5-1.0 MM |
500-15000MM |
|||
|
19MM |
0.5-1.25MM |
|||||
|
25 27MM |
0.5-1.5 MM |
500-6000MM |
||||
|
31 32 33MM |
0.8-2.0 MM |
|||||
|
38MM |
1.5-2.5 MM |
500-4000MM |
||||
|
50MM |
2.0-2.5 MM |
|||||
|
63MM |
2.0-2.5 MM |
|||||
|
Welded ------- Rolling |
6-10MM |
0.5-1.25 MM |
500-8000MM |
|||
|
10-15MM |
0.5-1.5 MM |
|||||
|
15-20MM |
0.5-2.0MM |
500-5000MM |
||||
|
20-25MM |
0.5-2.0 MM |
|||||
|
25-30MM |
0.5-2.0MM |
Titanium products are widely used in aerospace structuralmaterials, such as aircraft, rockets, missiles and spacecraft, shipsmanufacture, chemical industry, conventional weapons manufacturing,metallurgical industry, health care, ultra-high vacuum and other fields.In which, it is mostly used in chemical industry, and then in textile,paper making, metallurgy, electronics, salt making, medical equipmentand other fields.
Applications:
Heat exchangers and condensers
All kinds of corrosive fluid transmission pipeline system
Titanium bicycle tubes, automobile exhaust pipe
