OpenWRT Wireless Industrial LTE Router - 4G LTE Router With Sim Slot
Series: H850 Router (industrial grade, single sim, OpenWRT version, LAN RJ45*1+WAN RJ45*1, RS232*1)
VPN(IPsec, OpenVPN), SNMP, VRRP, DDNS, DHCP, NAT/NAPT, Web, Auto-dial, always online, watch-dog;
Option feature:
1) WiFi 802.11b/g/n (working as AP, Bridge Repeater, Client)
2) WiFi 802.11b/g/n 5.8Ghz or WiFi 802.11ac 5.8Ghz+2.4Ghz dual band (working as AP, Bridge Repeater, Client)
Notes: the default quotation is for WiFi is 802.11 b/g.
Description
1. Similar to H860 router, the H850 series Cellular Router is also an OpenWRT version router with smaller smart size, which is designed for establish a 2G/3G/4G cellular and Wi-Fi wireless network and share a cellular broad band Internet connection.
2. Hot Spot of H850t 4G Router
1) OpenWRT version. Support firmware development by users;
2) One line WAN and one Cellular WAN. Built-in 4G LTE industrial cellular modules, insert SIM/UIM card to work directly;
3) Built-in SIM/UIM card slot;
4) 4G LTE/3G/2G, fixed line broadband connections and WiFi Client failover;
5) Easy to management with GUI Web, Telnet SSH CLI
6) 1 LAN RJ45 port, 1 WAN RJ45 port, WiFi option;
7) VPN supported, DDNS, Dynamic Route, Firewall, NAT/NAPT, DMZ, Digital IO ports, GPS support (option)
8) Built-in watch dog, keep alive, etc.
Specifications for H850t 4G Router
|
Wireless |
|
|
Compatible Mobile Networks |
4G LTE (FDD/TDD) Back compatible to 3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+); 2G GSM EDGE/GPRS CDMA1x, CDMA2000 EVDO Rev 0, Rev A, Rev B TD-SCDMA |
|
Cellular Frequency |
4G FDD LTE: Band 1--2100Mhz Band 2--1900Mhz Band 3--1800Mhz Band 4—AWS(1700/2100Mhz) Band 5--850Mhz Band 7--2600MHz Band 8--900Mhz Band 12--700Mhz Band 13--700(B13)Mhz Band 17--700(B17)/AWS Band 19—800Mhz Band 20--DD800Mhz Band 21 Band 25 –1900Mhz G Block Band 31– 450Mhz
4G TDD LTE (TD-LTE): Band 41 – 2500/2600Mhz Band 40 -- 2300Mhz Band 39 – 1900Mhz Band 38 -- 2600Mhz Other TDD band…
UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD): 850/1900/2100 MHz, option for 850/900/1900/2100Mhz/1700Mhz/AWS;
3G TD-SCDMA: 2010~2025MHz/1880~1920MHz
Quad-band GSM/GPRS/EDGE 850/900/1800/1900Mhz;
CDMA1x/EVDO: 800/1900Mhz, option for 450Mhz;
Notes: There are many different band and frequencies for 4G LTE. Please confirm the detailed band and frequency with your carriers before order. |
|
Bandwidth |
FDD LTE: 100Mbps downlink, 50Mbps uplink;
DC-HSPA+: Downlink 42Mbps, Uplink 5.76Mbps; HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps; HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA: Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS: Downlink/Uplink 384 kbps;
EDGE: Downlink 384 kbps, Uplink 118 kbps; GPRS: Downlink 108 kbps, Uplink 42.8 kbps;
CDMA1x: Downlink/Uplink 153.6kbps; CDMA EVDO: Rev O: 2.4Mbps downlink, 153.6kbps uplink
3G TD-SCDMA: 2.8Mbps
Notes: the bandwidth is peak value. Real value depends on carrier network support. |
|
Network and Band Lock Feature (Option) |
Default is unlocked, can use this feature to lock |
|
Main Features and Performance |
|
|
USB Host |
No |
|
GPS (Option) |
GPS feature option |
|
VPN |
IPSec, OpenVPN |
|
OpenWRT |
Yes |
|
Route |
Static Route; |
|
Wi-Fi |
802.11b/g, 802.11n, 802.11ac; Can choose 54Mbps/150Mbps/300Mbps/450Mhz.
Frequency 2.4Ghz or 5.8Ghz or 2.4Ghz+5.8Ghz. Support Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users |
|
Firmware update |
Support flash new firmware image |
|
Syslog |
System log, Kernel log |
|
NTP |
Yes |
|
Scheduled Tasks |
Yes |
|
Protocol |
|
|
Protocol support |
TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, NAT, xDSL, NTP, QoS, SNMP, RIP |
|
Security |
|
|
Firewall |
support 64/128 bits WEP, 802.1x, WPA, and WPA2 support WDS support WPA1/2 – PSK support WPA1/2 – 802.1x support EAP – TLS, TTLS, LEAP, PEAP TKIP, AES encryption support access with user name & password. support access control base WAN/LAN interface support access control base source IP address defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc. support PAP & CHAP support IP filtering support content filtering support NAT/NAPT/Port forwarding/DMZ |
|
Advanced Firewall Features |
Network Address Translation (NAT) Stateful Packet Inspection (SPI) VPN Pass-through |
|
Media Access Control |
CSMA/CA with ACK |
|
Certifications |
REDIUS Client |
|
Interface |
|
|
LAN/WAN |
1X 10/100M LAN port (RJ45 interface) 1X 10/100M WAN port (RJ45 interface) |
|
Antenna |
1 or 2 antenna for Wi-Fi (detachable, SMA interface); 1 or 2 antenna for Cellular (detachable, SMA interface); 1 antenna for GPS (detachable, SMA interface) |
|
Led |
PWR*1 SYS*1 Cell*1 WAN*1 LAN (10/100M)*1 WiFi*1 |
|
Button |
Reset |
|
Console |
1 console port, Terminal block |
|
Serial port |
No |
|
IO Port (option) |
3 |
|
Management |
Web/Telnet/CLI/SSH, support remote management |
|
At command |
Supported |
|
UIM/SIM Card Slot |
Support 1.8V/3V UIM/SIM cards, one sim card slot |
|
DC Jack |
2.1mm DC jack * 1 |
|
Power |
|
|
Power supply |
DC5V-50V , typical DC 9V1A or 12V1A, 12v CAR USE; DC5V~40V is the default, DC5V~50V is the option |
|
Current |
Idle: about 120mA@12VDC Communication: about 270mA@12VDC |
|
Software |
|
|
Device Management |
WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.) |
|
Minimum System Requirements |
Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser; Network Interface Card |
|
Physical |
|
|
Operating Temperature |
Storage Temperature: -40 ~ 85°C Working Temperature: -30 ~ 75°C |
|
Humidity |
95% Maximum (Non-condensing) |
|
Dimensions |
PCBA: 90mm x 70mm x 23mm With case: 100mm x 78mm x 26mm |
|
Weight |
375g (not including the antenna) |
|
Color |
Metal Gray-Black, OEM is available |
|
Others |
|
|
Warranty |
1 Year default. Option extends to 5 years maximum. |
|
Package Contents |
H850 Series Wireless 4G Router Ethernet Cable Power Adapter Antenna Others depends on option features |
Applications
- Remote Data Monitor and Control
- CCTV, security surveillance
- Water, gas and oil flow metering and schedule
- AMR (automatic meter reading)
- Power station monitoring and control
- Remote POS (point of sale) terminals, ATM,
- Traffic signals monitor and control, Traffic info guidance
- Oil field, weather forecast, environmental protection, street lamp monitoring and control
- Early Warning of Mountain Torrent
- Fleet management
- Power distribution network supervision
- Central heating system supervision
- Weather station data transmission
- Hydrologic data acquisition
- Vending machine
- Telemetry, SCADA
- Vehicle logistics and diagnostics controlling
- Parking meter and Taxi Monitor
- Telecom equipment supervision (Mobile base station, microwave or optical relay station)
Typical Application Diagram for H850t 4G LTE Router

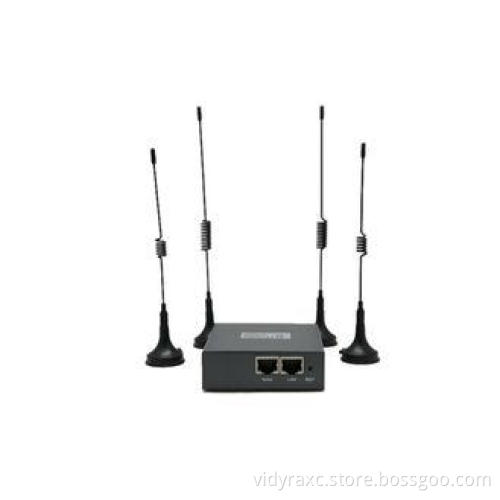

More Pictures for H850t 4G LTE Router
