P16 Flexible LED Screen Soft LED Display Full Color For Nig

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China

Product Description

P16 Flexible LED Screen Soft LED Display Full Color For Night Club

Quick Detail:

1. ≤1mm surface level up, smooth video

2. Long lifespan up to 100,000 hours

3. High brightness: >6000cd/㎡

4. IP65 Ruggedness, all-weather qualified

5. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

6. Perfect quality and stability, 24/7 running

Description:

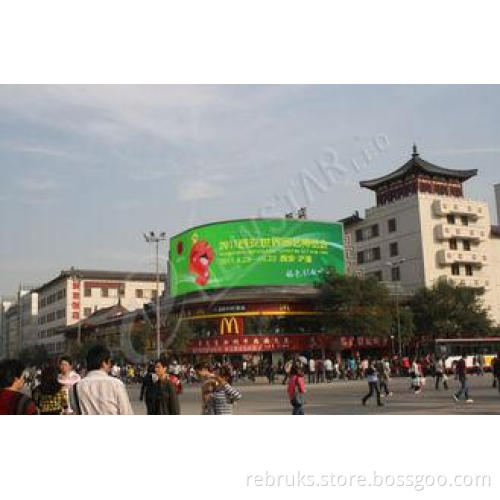

1. It can be curved into different shape to fit convex or concave wall or rugged wall or building, also it can

be shaped into column to wrap pillars for animation decoration.

2. We make best design with high cost- efficiency according to the actual needs of our customers and we

can offer OEM service as well.

3. Easy to maintain, High resolution, Good contract, Less Weight, easy to install. Widely used as the

information billboard in Airport, Railway station, and big shopping mall, concert and ect.

4. The brightness of indoor LED signs is adjustable so as to ensure different environment.

Applications:

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as

banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P16
Pixel Pitch	16mm
Module Size	256mm×256mm
Module Resolution(dots)	16*16
Panel Size	1024mm×768mm
Panel Resolution(dots)	64×48
Pixel Configuration(RGB)	1R1G1B
Pixel Density(dots/m²)	3906
Brightness(cd/m²)	≥ 8000
Best Viewing Distance(m)	15-300
Max. Power Consumption(W/m²)	1000
Drive Mode	Static
Wavelength	R 620-625 G 520-525 B 470-475
Viewing Angle	110°(H)/45°(V)
Operating Temperature	–20~60°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
Life Span	≥100,000 hours
Working Voltage	220V±15% OR 110V±15%
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION
Control System	LINSN OR DB-STAR

2. Outdoor LED Display Module

Module Size (W*H)	256mm*256mm	Pixel Configuration	1R1G1B
Pixel Pitch	16mm	Resolution (W*H)	16 dots*16 dots
Pixel Density	3906 dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	1024mm*768mm	Module Qty	12 pcs
Cabinet Resolution (W*H)	96 dots*64 dots	Cabinet Pixel	6144
Weight	40 kg/ Cabinet	Area	0.6144㎡
Average Power Consumption	350w/㎡	Max Consumption	1000W/m2

4. Methods for Quality Assurance

a. Aging

b. Vibration Testing

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. Long Life Span > 100,000 hours

2. High Quality and High performance

3. Front/Rear access Available

4. Reasonable Price, Superior Service.

5. Free maintenance service
