IP65 SMD 3528 P8mm Billboard LED Display Outdoor For Shoppi

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China

Product Description

Quick Detail:

1. P8 outdoor led board

2. Size changeable

3. Variety input source

4. Longer view distance

5. High brightness& refresh rate

6. Waterproof Level:IP65

IP31 SMD 3528 P8 Billboard LED Display Outdoor For Shopping Mall

Description:

1. Arbitrarily exchanging the display or displaying synchronized video

2. Combining several global leading display board control technologies, such as grey level code

technology, brightness control technology, and nonlinearly rectifying technology

3. Modularization, high resolution and high contrast design, vivid dynamic display

4. Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth

of lamp or neon

5. Economical maintenance and cost saving

Applications:

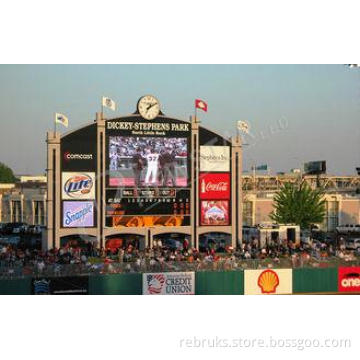

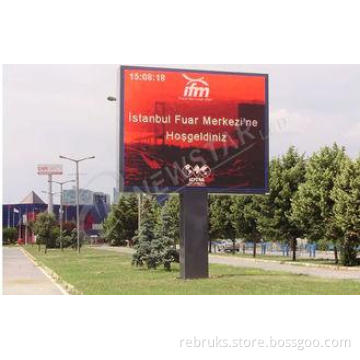

Commercial advertising, mobile media, night club, entertainment events, business establishments, such

as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,

shopping malls, railways, airports, harbors, etc;

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-SD-P8
Pixel Pitch	8mm
Module Size	256mm×128 mm
Module Resolution(Pixel)	32dots×16dots
Pixel Density	15625dots/m2
LED Type	SMD 3 in 1
Pixel Configuration	1R1G1B
Wavelength (R.G.B)	R:625±2nm G:525±2nm B:470±2nm
Drive Mode	Dynamic 1/4 Duty Constant Current
Cabinet Size	1024×768×135mm
Cabinet Resolution	128dots×96dots
Brightness	≥6000 cd/m2
Contrast	≥ 2000:1
Viewing Angle	140°(Horizontal )/140°(Vertical )
Best Viewing Distance	6m
Grey Scale	10bits/1024levels
Color Capability	16777216
Color Temperature	5000-9300K
Maximum Power Consumption	780W/m2
Average Power Consumption	260W/m2
Working Voltage	AC 220V/110V s±15% 50-60 HZ
Frame Frequency	60-85 HZ
Refresh Frequency	240 - 1000HZ
Brightness Correction	Pixel, Module, Cabinet Correction
Operating Temperature	Static:-40°C ~+85°C Working:-20~+65°C
Operating Humidity	10-90% RH
LED Lifespan	100,000 hours
MTBF	≥50,000 hours
Computer Operation System	Win 98/ Win XP/ Win 2000
Video Signal Input	RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output	RF, S-Video, GB, RGBHV, YUV, YC etc.
Graphics Card	DVI Graphics Card
Control Distance	UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km
Control System	LED studio 10.0
Software	LINSN OR DB-STAR
Waterproof Level	IP65
Installation	Wall mount, hung and stand structure
Out of Control Rate	0.01 %

2. Outdoor LED Display Module

3. Outdoor LED Display Cabinet
