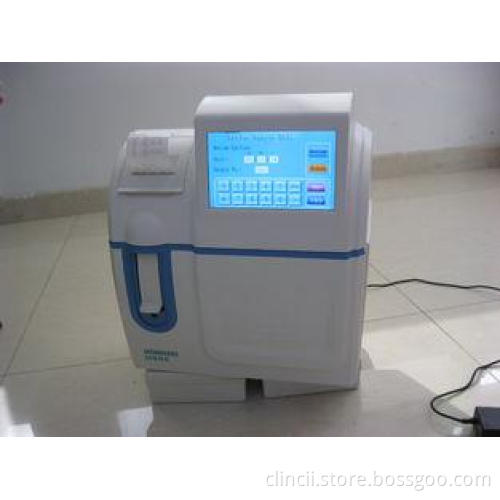

Color Touch Screen Big Display ISE Analyzer with 50000 Resu
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Competitive Advantage:
Color touch screen
TCO2 options
16 years proven quality
Main Features:
7" Color touch screen, easy to operate
High accurate and long life electrode and TCO2 sensor
Programmable multi-format print-out
Reagent pack, real time monitoring of reagent residual volume
Up to 50,000 test results can be stored
RS-232 port, supporting bar code reader and USB interface
Sleep mode to reduce reagent consumption
Option: Auto Sampler
Parameter configuration:
A K, Na, Cl
B K, Na, Cl, TCO2
D K, Na, Cl, iCa, nCa, TCa, pH, TCO2, AG
G K, Na, Cl, Li, TCO2
I K, Na, Cl, iCa, nCa, TCa, pH, Li, TCO2, AG
J K, Na, Cl, iCa, nCa, TCa, pH, Mg, TCO2, AG
K K, Na, Cl, iCa, nCa, TCa, pH, Li, Mg, TCO2, AG
Specifications:
1. Sample: serum, plasma, whole blood, cerebrospinal fluid and dilute urine
2. Measuring speed: ≤25s
3. Analysis Method: ion selective electrode (ISE)
4. Sample volume: 60-300ul
5. Sampler position: 39 positions (including 5 emergency and 2 QC)
6. Sample tube: Primary tube, micro tube, plastic tube, etc.
7. Storage: up to 10,000 test results
8. Printer: Internal thermal printer
9. Interface: RS232 port
10. Working environment:Temperature: 5-40℃ Relative Humidity: ≤ 80 %
11. Power supply: 220V±20V, 50-60Hz
12. Power: ≤120W
13. Dimension: 340mm*200mm*380mm
14. Net weight: 6Kg
|
Items |
Measuring Range |
Resolution |
Measuring Precision (CV%) |
|
K+ |
0.5-20.0mmol/L |
0.01 mmol/L |
≤1.0% |
|
Na+ |
15-200mmol/L |
0.1 mmol/L |
≤1.0% |
|
Cl- |
15-200mmol/L |
0.1 mmol/L |
≤1.0% |
|
Ca2+ |
0.1-6.0mmol/L |
0.01 mmol/L |
≤1.0% |
|
Li+ |
0.1-5.0mmol/L |
0.01 mmol/L |
≤2.0% |
|
pH |
4-9pH |
0.01 pH |
≤0.5% |
|
TCO2 |
2.0-70.0mmol/L |
0.1 mmol/L |
≤3.0% |
