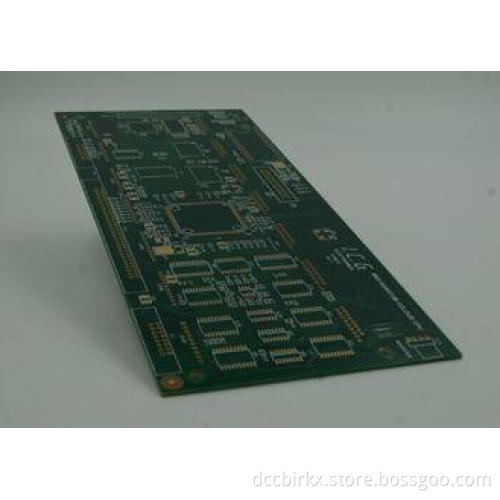

Aluminum Rigid PWB Green / Black Solder Mask FR4 PCB Technology
FR4 PCB Capability
|
|
High precision prototype |
PCB bulk production |
|
|
Max Layers |
1-28 layers |
1-14 layers |
|
|
MIN Line width(mil) |
3mil |
4mil |
|
|
MIN Line space(mil) |
3mil |
4mil |
|
|
Min via (mechanical drilling) |
Board thickness≤1.2mm |
0.15mm |
0.2mm |
|
Board thickness≤2.5mm |
0.2mm |
0.3mm |
|
|
Board thickness＞2.5mm |
Aspect Ration≤13:1 |
Aspect Ration≤13:1 |
|
|
Aspect Ration |
Aspect Ration≤13:1 |
Aspect Ration≤13:1 |
|
|
Board thickness |
MAX |
8mm |
7mm |
|
MIN |
2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm |
2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm |
|
|
MAX Board size |
610*1200mm |
610*1200mm |
|
|
Max copper thickness |
0.5-6oz |
0.5-6oz |
|
|
Immersion Gold/ Gold Plated Thickness |
Immersion Gold:Au,1—8u” |
|
|
|
Hole copper thick |
25um 1mil |
25um 1mil |
|
|
Tolerance |
Board thickness |
Board thickness≤1.0mm:+/-0.1mm |
Board thickness≤1.0mm:+/-0.1mm |
|
Outline Tolerance |
≤100mm:+/-0.1mm |
≤100mm:+/-0.13mm |
|
|
Impedance |
±10% |
±10% |
|
|
MIN Solder mask bridge |
0.08mm |
0.10mm |
|
|
Plugging Vias capability |
0.25mm--0.60mm |
0.70mm--1.00mm |
|
Metal Core PCB Capability
Base material: Aluminum/Copper/Iron Alloy
Thermal Conductivity (dielectrial layer): 0.8, 1.5, 2.0, 3.0 W/m.K.
Withstand voltage:2000-5000V
Board Thickness: 0.5mm~3.0mm(0.02"~0.12")
Copper thickness: 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ
Outline: Routing, punching, V-Cut
Soldermask: White/Black/Blue/Green/Red Oil,Taiyo PSR4000
Legend/Silkscreen Color: Black/White
Surface finishing: Immersion Gold, HASL, OSP
Max Panel size: 600*1200mm(23.62"*47.24")
Packing: Vacuum/Plastic bag
Samples L/T: 4~6 Days
