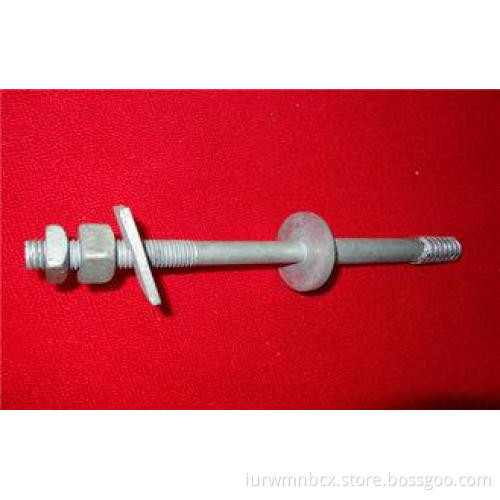

Hot Dip Galvanzied Carbon Steel High Voltage Insulator Spindles
Quick Detail:
High Voltage Insulator spindles
Used for insulator and fixed the conducter
Spindle Of Pin Type Insulators For High Voltage
Material:carbon steel
Surface: Hot Dip Galvanzied
Description:
1.The surface of the products are covered by strong insulating rubber layer
2. This ceramic insulator with a high dielectric strength
3. Good performance
4. Reasonable price and factory direct price
5. We have our own factory and we can ensure the quality.
6. We wormly welcome you come to visit our factory and seek further cooperation
Applications:
Widely used for insulation and fixed the conducter in aerial communication lines
Specifications:
|
Fig. NO |
Main Dimensions(mm) |
Mechanical Strength(KN) |
Class ANSI |
Weight(kg) |
||||||
|
H |
D |
h |
h1 |
h2 |
a |
d1 |
||||
|
1 |
330 |
76 |
178 |
51 |
76 |
34.9 |
20 |
11 |
56-1 |
1.9 |
|
1 |
356 |
76 |
178 |
51 |
76 |
34.9 |
20 |
9 |
56-2 |
2.2 |
|
1 |
407 |
89 |
178 |
51 |
76 |
34.9 |
20 |
10 |
56-3 |
2.5 |
|
1 |
432 |
89 |
178 |
51 |
76 |
34.9 |
20 |
9 |
56-4 |
3.25 |
|
1 |
343 |
45 |
165 |
51 |
76 |
34.9 |
20 |
6 |
56-2 |
1.6 |
|
2 |
198 |
76 |
45 |
51 |
40 |
34.9 |
20 |
11 |
56-1 |
1.54 |
|
2 |
223 |
76 |
45 |
51 |
40 |
34.9 |
20 |
9 |
56-2 |
1.87 |
|
2 |
274 |
89 |
45 |
51 |
40 |
34.9 |
20 |
10 |
56-3 |
2.17 |
|
2 |
299 |
89 |
45 |
51 |
40 |
34.9 |
20 |
9 |
56-4 |
2.7 |
|
2 |
223 |
45 |
45 |
51 |
40 |
34.9 |
20 |
6 |
56-2 |
1.3 |
|
1 |
356 |
76 |
76 |
51 |
76 |
34.9 |
16 |
5 |
56-2 |
1.9 |
Competitive Advantage:
1. Various designs available
2. Customized designs accepted
3. Safe usage
4. Fast shipping and great service
5. Good quality and reasonable price
