High Speed 20-125mm Ppr Pipe Production Line , Waste Plasti
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhangjiagang city, China |
|---|
Quick Detail of PPR pipe production line extrusion line :
PPR pipe extrusion line
20-125MM diameter
CE&ISO certificate
Description of PPR pipe production line extrusion line:
The screw of the extruder equipped with barrier unit and mixing structure, and the barrel owns new
style grooves. All of these offer good plastification and mixing effect.
Special design of basket die head of for PPR large diameter pipe with thick wall offer lower melting temperature, good mixing,lower pressure of cavity, and stable production.
Applications of PPR pipe production line extrusion line:
PPR pipe extrusion line, 20-125mm diameter,for water &gas supply.

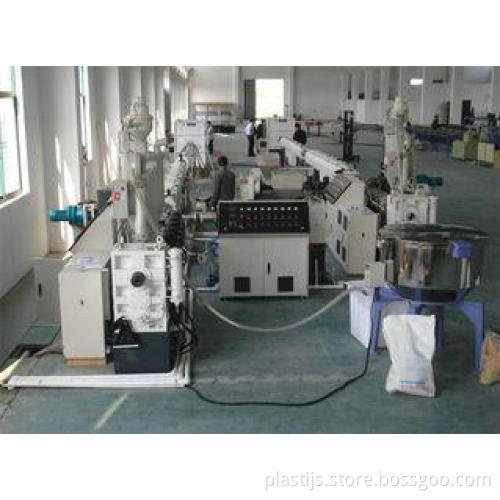

The production line compose by :extruder-mould-vacuum calibration tank-spray cooling tank-haul off - cutter - stacker
Specifications of PPR pipe production line extrusion line:
|
Model |
BQX63 |
BQX63 |
BQX63 |
BQX160 |
BQX160 |
|
Diameter range(mm) |
20-63 |
20-63 |
20-63(dual) |
20-125 |
20-125 |
|
Extruder |
SJ65/33 |
SJ60/38 |
SJ75/38 |
SJ75/33 |
SJ60/38 |
|
Haul speed (m/min) |
10 |
25 |
15 |
5 |
12 |
|
Motor power(KW) |
55 |
110 |
132 |
75 |
110 |
|
Capacity(KG) |
150 |
350 |
450 |
250 |
350 |
Competitive Advantage of PPR pipe production line extrusion line:
- 1. PPR raw material for elements only carbon and hydrogen elements, without harmful toxic elements,
- healthy,not only for hot and cold water pipe, but used in clean drinking water system.
- 2.Good heating resistance, PPR pipe via soften point of 131.5 degree.the Max working temperture up
- to 95 degree, the Pipe which used in Water supply and Drainage up to the construction specification
- required by Clients.
- 3.Long service life, PPR pipe in working temperature 70 degrees,working pressure1.0 Mpa, can be up
- to 50 years, at room temperature 20 degree, easy installation, connection
- 4.Recycling the waste PPR material.
ppr pipe production line
