CNC PPR Plastic Extrusion Machine , Plastic Pipe Production
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhangjiagang city, China |
|---|

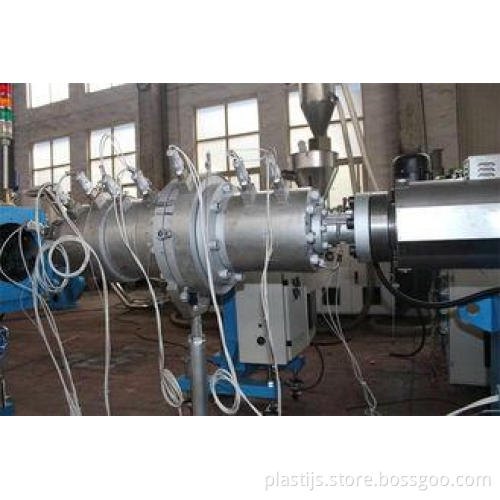

CNC PPR Plastic Extrusion Machine , Plastic Pipe Production Line
Quick Detail of PPR pipe production line mould :
- Pipe diameter:16-125mm
2)Die type:single die head
3)Certificate:CE, ISO
PE pipe mould ,contain basic mould,mouth mould,core mould.
Description of PPR pipe production line mould :
Mold is made of high-quality steel, the quenched and tempered treatment;Flow surface polishing treatment;Sizing material for copper alloy.
Mould adopts advanced long helical structure, material plasticizing effect is good, low materials extrusion pressure, pressure fluctuations.
Applications of PPR pipe production line mould :
PPR PIPE EXTRUSION .
Specifications of PPR pipe production line mould :
|
Name |
ppr pipe mould |
|
Mould material |
3Cr17, 3Cr17MoNiV, DIN1.2316 or as per your request |
|
Mould cavity |
1 or multi-cavity |
|
Mould composition |
Die head, aluminum heating band, calibrators & water tank |
|
Moulds scope |
Moulds for seals, pinch strips, pushing rails, etc in household appliance industry; |
|
Feature |
Technology of multi-color co-extrusion, soft-hard co-extrusion steel-plastic co-extrusion and different material co-extrusion |
|
Test |
Mould will be tested to get the satisfy sample before deliver |
|
Sample |
Sample will be arranged by express courier for customer approval |
|
Lead time |
20 days |
|
Package |
Poly wood case for exporting, each mould will be cleaned before packing. |
|
Quality assurance |
CE ,ISO9001 |
Competitive Advantage of PPR pipe production line mould :
PPR pipe extrusion mould (spiral mould) spiral mould features: speed of melt flow meets the expected mechanics uniformity, hot uniformity.
1. The spirochete can be used for layer, middle, outer pipe production use, also can be used for various pressure levels of pipes;
2. Low pressure consumption and high output;
3. Without mandrel stents, which will make fluxion in production disappear;
4. Structure is compact, connection is reasonable and easy to change;
5. High quality steel mold manufacturing;
6. There is the device of internal heating constant temperature when the pipe diameter is above 200mm (internal heater and die machine)
7. Flow channel is chrome plated and polished, which let users get the best outer pipe.
8. Equipped with mould moving car, electric 90 °turn, which could replace mould specification more convenient and quick. At present in China's pipe market, plastic pipe is developing steadily, PE pipe, PPR pipe, UPVC pipes all occupy a place, PE pipe is developing the most remarkable.
PPR PIPE PRODUCTION LINE MOULD
