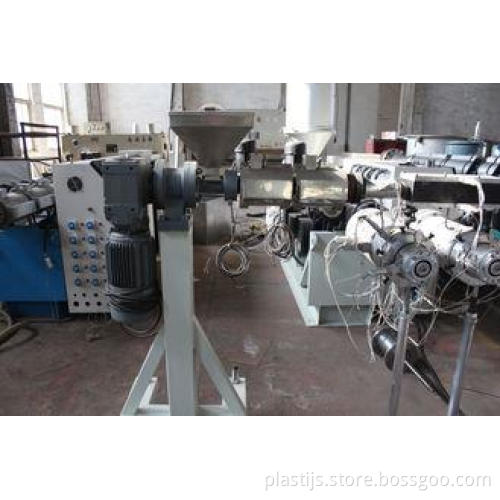

Plastic Dual Pipe Machine Line PPR Pipe Production Line High Speed Extruder Machine
Quick Detail of PPR Pipe production line Dual Pipe Machine:
1.High plasticizing performance
2.Stable capacity and reasonable design
3.ISO9001
Description of PPR Pipe production line Dual Pipe Machine :
High speed double PO resin pipe extrusion line
1.Double extrusion type:to promote the release of the maximum product capacity
2.Disc type calibration sleeve:Rapid prototyping
3.Accurate flow control,constant water pressure control
4.Accurate water temperature control
5.European large capcity filter,not easy blockage,to ensure that the water flow and convenient cleaning
6.Unified supporting wheel adjusting mechanism,quick and convenient
7.Belt haul-off,frequency or servo control
8Dust free cutter,forward and backward movingusing linear guide
Specifications of PPR Pipe production line Dual Pipe Machine :
| Mode | Screw Dia. |
Length to diameter |
Rotational Speed of screw |
Height of center point | Capacity |
Drive Power
|
| SJ-30-/25CY | 30mm | 25:1 | 10-160r/min | 1000mm | 19.5kg/h | 2.2kw,3kw |
| SJ-45/25HY | 45mm | 25:1 | 10-90r/min | 1000mm | 22.5kg/h | 5.5kw |
| SJ-45/25CY | 45mm | 25:1 | 16-160r/min | 1000mm | 35kg/h | 7.5kw,11kw |
| SJ-45/28CY | 45mm | 28:1 | 16-160r/min | 1000mm | 40kg/h | 7.5kw,11kw |
| SJ-45/25HY | 45mm | 25:1 | 16-160r/min | 1000mm | 35kg/h | 11kw |
| SJ-50/25HY | 50mm | 25:1 | 16-160r/min | 1000mm | 40kg/h | 11kw,15kw |
| SJ-65/25HY | 65mm | 25:1 | 8-80r/min | 1000mm | 100kg/h | 18.5kw |
| SJ-65/28CY | 65mm | 25:1 | 15-120r/min | 1000mm | 100kg/h | 18.5kw,22kw |
| SJ-65/28HY | 65mm | 28:1 | 16-160r/min | 1000mm | 120kg/h | 22kw,30kw |
| SJ-65/30CY | 65mm | 30:1 | 15-120r/min | 1000mm | 120kg/h | 22kw,30kw,37kw |
| SJ-65/34CY | 65mm | 34:1 | 15-120r/min | 1000mm | 120kg/h | 22kw,30kw,37kw |
| SJ-70/25HY | 70mm | 25:1 | 8-80r/min | 1000mm | 120kg/h | 22kw |
| SJ-90/25HY | 90mm | 25:1 | 10-100r/min | 1000mm | 155kg/h | 30kw,45kw,55kw |
| SJ-120HY | 120mm | 25:1 | 30-90r/min | 1000mm | 250kg/h | 75kw |
Competitive Advantage of PPR Pipe production line SJ60-38 PPR pipe line :
This series high efficiency single screw extruder to introduce the Europe advanced concept of plastic extruding ,screw use L/D 38:1 .
Double mixing head, separation structure,can make sure melting material 100% plasticizing before die head,capacity increases by about 30% than in ordinary domestic models;it is used for PE/PPR/PPB/PPH/PERT and PB.
To meet of the individual demand and more diverse applications,our company can supply different L/D extrusion machine.
