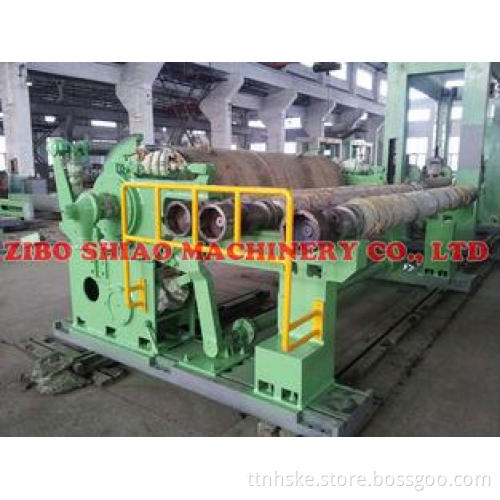

Horizontal Reel Machine Paper Finishing Equipment for Rolling Paper

Quick Detail:

Horizontal Reel Machine is the first finishing device after paper machine. The paper roll is driven by it is own weight and the rotation of the cold cylinder. It has many types, such as small horizontal reel machine, horizontal reel machine, roll base type reel machine and so on.

Description:

Horizontal Reel Machine

1. Type: Small horizontal reel machine, horizontal reel machine, roll base type reel machine.

2. Paper kinds: Cardboard paper, corrugated raw paper, cultural paper, tissue paper, etc.

3. Working speed: 150-950m/min

4. Reel diameter: 1200-3000mm

Applications:

Horizontal Reel Machine can meet the requirements of different kinds of paper, and can make paper from the paper machine into rolls with uniform tightness to meet the requirements of different kinds of paper.

Specifications:

Horizontal Reel Machine

1. Type: Small horizontal reel machine, horizontal reel machine, roll base type reel machine.

2. Paper kinds: Cardboard paper, corrugated raw paper, cultural paper, tissue paper, etc.

3. Quantitative: 15-500g/㎡

4. Trim width: 1092-5000mm

5. Designed speed: 150-1000m/min

6. Working speed: 150-950m/min

7. Reel diameter: 1200-3000mm

8. Drive mode: AC motor variable frequency control.

Competitive Advantage:

Our company can design the technical programs of horizontal reel machine and make an offer for the customer’s reference with the requirements of customer.
