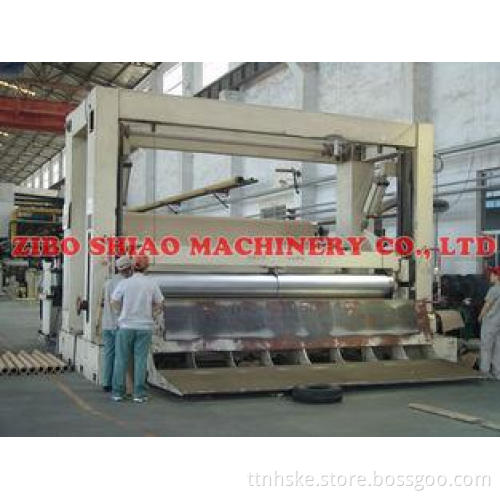

Paper Rewinder Machine Paper Finishing Equipment for Slitting / Rewinding Paper
Quick Detail:
Framing Rewinder is one of finishing equipment for paper machine production line, and it is used for slitting and rewinding the paper.
Description:
Framing Rewinder
1. Paper kinds: Cardboard paper, corrugated raw paper, cultural paper, etc.
2. Quantitative: 60-500g/㎡
3. Max diameter of raw paper: 1600-3000mm
4. Max diameter of finished paper: 1000-2000mm
Specifications:
Framing Rewinder
1. Paper kinds: Cardboard paper, corrugated raw paper, cultural paper, etc.
2. Quantitative: 60-500g/㎡
3. Specification: 1092-6000mm
4. Gauge: 2200-7150mm
5. Working speed: 600-1800m/min
6. Max diameter of raw paper: 1600-3000mm
7. Max diameter of finished paper: 1000-2000mm
8. Drive mode: DC motor drive / Frequency conversion motor drive.
9. Braking mode: DC motor braking/Frequency motor braking.
Competitive Advantage:
Our company can design the technical programs of framing rewinder and make an offer for the customer’s reference with the requirements of customer.
