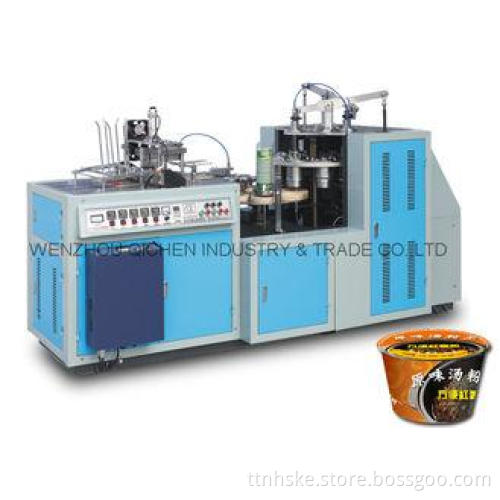

Instant Noodle Bowls 35-40 Speed Paper Bowl Machine For Bowl Paper
Quick Details:
| Gear Box | Two Gear Boxes keep machine run stable and well |
| Paper Bowl Size | 20 oz-50 oz (mold exchangeable) height up to 125 mm |
| Tension Bars | Two Tension Bars keep machine run stable and well |
| Production Capacity | 35-40 Pcs per min |
| Warranty | 1 years |
| Usage | Hot drink or Cold drink |
| after-sales service | Free training, Engineers available to service machinery overseas |
Description:
Model ZW-A35 Paper Bowl Machine is an automatic machine with multi-working station, functions of failure alarm, photocell detection, counter and easier maintain, safer operation and. the advantages of humanism design.
Specifications:
| Model | ZW-A35 Paper Bowl Machine |
| Paper Bowl Size | 20 oz-50 oz (mold exchangeable) height up to 125 mm |
| Raw Material |
One-side PE (polyethylene) film coated / laminated paper Ultrasonic machine can be produce both single and double PE paper |
| Suitable paper weight | 140-450 g/㎡One-side or two PE coated paper |
| Productivity | 35-40 Pcs/min |
| Power Source | 220V/380V 50Hz or other required |
| Total Power | 6 KW |
| Total Weight | 2500KG |
| Package Size(L x W x H) | 2830 x1450 x1900mm + 1050x570 x750mm; |
| Working Air Source | 0.6Mpa, Air Out-put:0.6 m3/minute |
| Available to make any special size paper bowl machine and mould | |
Competitive Advantage:
1. We use two Gear Box (one is 140 type and another one 100 type)
2. we use two tension bars in our machine
3. We using φ30 import steel shaft for the machine
4. We using 3 Cam to control the folding process.
5. We using two times paper feeding process.
6. We using Multilayer suckers for the paper taking
The parts we used VS normal one
1) The Gear Box we use is 140 type, Normal one is 125 type.
140 type is much bigger and stronger than 125 type.
2) We use two Gear Box (one is 140 type and another one 100 type), normally one gear box is used in the paper bowl machine.
However one gear box is not stable as two. We use two, so it will not easily move after it is used for a long time.
3) As showed above, we use two tension bars, while normally one is used.
Two make this part balanced, it will not swing after a long time.
Applications:
Produce bowls for ice cream, soup, noodle etc
Processing Step:
Printing Step: The PE coated paper should be printed with different design and different color. So when we make the paper, there will be beautiful design with logo on the bowls.
Cutting Step: In this step, you should decide the size of the bowl, so we can cut the paper fan in decided size.
Paper Forming Step: You should put the paper fan on the machine, so the paper fan could be folded by the paper bowl machine. Then the paper bowls are formed, we can use the bowls and enjoy delicious drinks.
Packing:
FCL: paper bowl machine with wood tray and plastic film.
LCL: paper bowl machine with wood box and plastic film.
We will Spraying oil in paper bowl machine for keeping rust away
