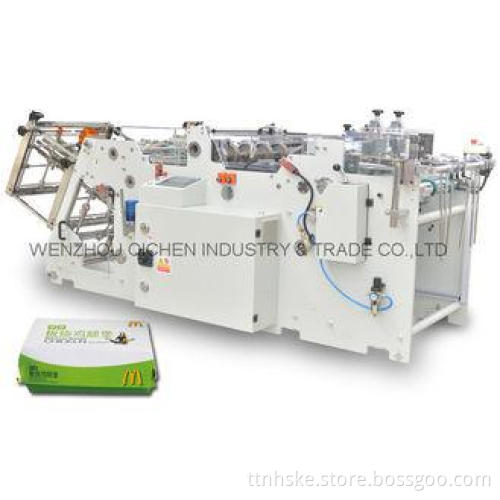

High Speed Folder Gluer Machine , Carton Box Manufacturing
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
High Quality High Speed Carton Box Manufacturing Process
Main Components In Machine:
| Item | Brand |
| PLC: | Siemens; |
| Touch-screen: | Siemens; |
| Transducer(AC Driver): | Siemens; |
| Main Motor: | Siemens; |
| Reduce gear motor: | JSCC; |
| Low-voltage electric element : | Schneider; |
| KEY-bearing: | SKF; |
| Guide Rail(axis): | INA; |
| Key mechanic components: | Imported ; |
Whole machine include:
- Electric control box;
- Feeding device;
- Transfer System:
- Water glue device ;
- Forming(welding) device;
- Collection device ;
- One set of mold;
Quick details:
| Usage | Easy mould change for burger box, one block box, food pail box, french fries box etc |
| Speed | Max 180 PCs/min |
| Warranty | 1 years |
| Control | PLC touch screen, sever-motor |
| after-sales service | Free training, Engineers available to service machinery overseas |
Description:
Folder gluer Machine (High Quality High Speed Carton Box Manufacturing Process) is an automatic machine, specialize in making food carton, box, container which are made from cardboard, paper, paperboard, corrugated paper etc.
Specifications:
| Model | QH-9905 High Quality High Speed Carton Box Manufacturing Process |
| Productivity | Max 180 pcs /min |
| Sealing Method | Glue Sealing/ Hot Air Sealing |
| Material | cardboard, paper, paperboard, corrugated paper etc |
| Paper Thickness | Max 1.5 mm, 200-600 g/m² |
| Power Source | 220V/380V 50Hz or other required |
| Total Power | 3KW |
| Total Weight | 2000KG |
| Package Size(L x W x H) | 2950*1320*1500 mm |
| Working Air Source | 6kg/cm²*200 L/min |
Competitive Advantage:
1. Compact structure, Strong frame, keep the machine reliable and durable with low noise
2. Hard Plastic-glass cover, Safe and visible for user.
3. Easy exchange molds to make different products, charging and adjusting time is very short.
4. PLC program control the whole line, available to make complicated boxes.
5. Automatic collection, stock, and count.
6. Human being designed control button and panel, more easy and safe runs by user.
Applications:
Supply For burger box, hot-dog box, one block box, food pail box, fries box, lunch box etc.
Making Process:
Printing Step: The Pe coated paper should be printed with different design and different color. So when we make the paper, there will be beautiful design with logo on the boxes.
Cutting Step: In this step, you should decide the size of the box, so we can cut the paper fan in decided size.
Paper Forming Step: You should put the paper fan on the machine, so the paper fan could be folded by the folder gluer machine. Then the paper boxes are formed, we can use the boxes..
Packing:
FCL: High Quality High Speed Carton Box Manufacturing Process with wood tray and plastic film.
LCL: High Quality High Speed Carton Box Manufacturing Process with wood box and plastic film.
We will spray oil in paper cup machine for keeping rust away
