Automatic Self Aligning Pipe Welding Rotator With Manipulator Anti-Creep
1. Introduction

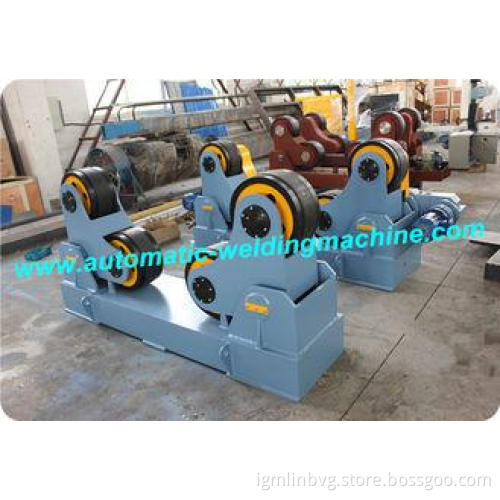

Self aligning welding rotator is used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber. It can be aligned by itself according to the size of the shell, it can be controlled with AC frequency converter, and the linear velocity is displayed by the digital. We also can design the customize various types of the welding rotator in accordance with the customers requirement.
2. Technical parameter
|
Model |
ZG-40 |
ZG-60 |
ZG-80 |
ZG-100 |
|
Rated loading (t) |
40 |
60 |
80 |
100 |
|
Working range (mm) |
φ600-φ4200 |
φ750-φ4800 |
φ850-φ5000 |
φ1000-φ5500 |
|
Rubber roller width (mm) |
120 |
120 |
120 |
120 |
|
Metal roller width (mm) |
30 |
50 |
60 |
70 |
|
Linear speed (mm/min) |
100-1000 |
|||
|
Motor power (kW) |
3 |
4 |
4 |
5.5 |
3. Main features
● Polyurethane roller or Rubber Roller
● Anti creep function
● Hydraulic lifting for fit up pipe
● Automatic traveling or Manual traveling on the rail
● Customization
| Welding rotator reducer and gear, also motor parts, we will adopt cycloid reducer and famous brand motor, this kind of welding rotator is produced according to Europ Standard and with CE. |
|
Reducer and gear, also has cycloid reducer
If you want to see the video please search Luk Mankai on youtube |
